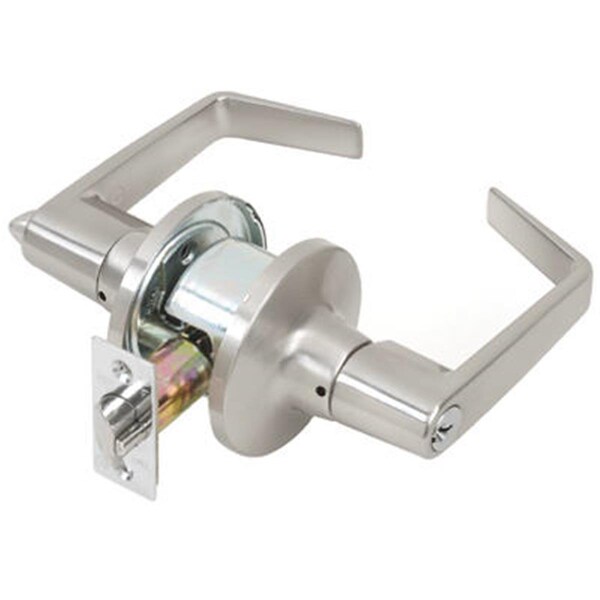

CL100201 13 x 3.5 in. Light Duty Commercial Tubular Grade 2 Entry Lever

Features Light duty commercial tubular grade 2 entry lever. Complies with ansi a 156 2 series 4000 grade 2 400 000 cycles. Ul listed for 3 hour fire door & ansi a117 1 american disabilities act. Tubular steel chassis coated with zinc dichromate corrosion resistance. Lever is non-handed & solid cast latch. Size - 1-1/8 x 2-1/4 in. Square corner faceplate. 1 in. Housing diameter stainless steel. 1/2 in. Throw adjustable backset 2-3/4 or 2-3/8 in. Us26d satin chrome finish. 1-1/8 x 2-3/4 x 3/32 in. T strike. Use of doors 1-3/8 to 1-3/4 in. Thick. Uses 2-1/8 diameter hole for lever & 1 in. Diameter hole for latch bolt. Fits standard 161 door prep. Includes 2 nickel silver keys. Dimension - 13 x 3.5 x 9 in. Item weight - 2.5 lbs.
