This item is Discontinued.

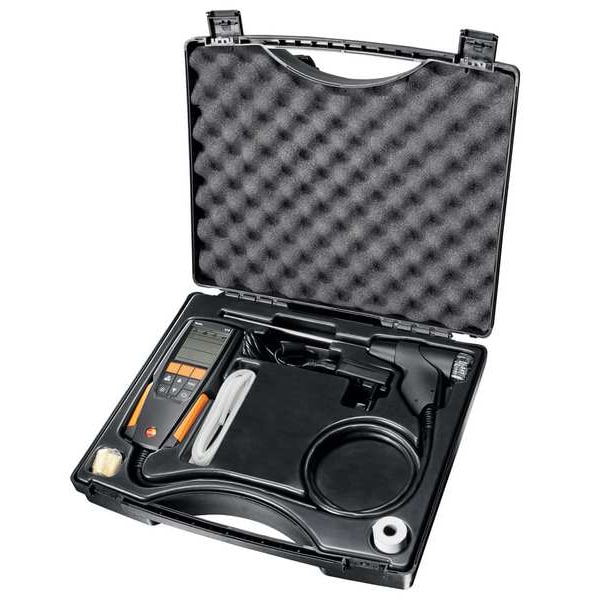

Testo Combustion Analyzer Kit, Residential 0563 3100

Combustion Analyzer Kit, Residential (Discontinued)

  • Mfr # 0563 3100
  • Zoro # G4672981
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0563 3100
Zoro #
G4672981
UPC #
-
Country of Origin
Germany

Dimensions

Manufacturers Warranty Length
24 Months - Instrument, Sensors, Probe, 12 Months - Thermocouple, Rechargeable Battery
Manufacturer Warranty Length
24 mo

Details

Item
Combustion Analyzer Kit
Type
Residential
Fuel Type
Bio Heat 5, Fuel Oil 2, Natural Gas, Propane, Wood
Combustion Efficiency
Calculated
Oxygen Concentration
0 to 21.0 vol%
Carbon Dioxide Concentration
0 to CO2 max Calculated
Pressure/Draft
-16 to +16 In. WC - Pressure, -8 to +8 In. WC - Draft
Carbon Monoxide Measurement Range
0 to 4000 ppm
Battery Type
Lithium-Ion Rechargeable 1500 mAh
Nitrogen Dioxide Measurement Range
None
Sulfur Dioxide Measurement Range
None
Includes
(5) Extra Particulate Filters, (5) Pressure Plugs, AC Power Supply (USB), Calibration Certificate, Case, Hose, Probe with Cone, Sensors, Silicon Tubing
Primary/Ambient Air Temp.
-4 Degrees to 212 Degrees F (20 Degrees to 100 Degrees C)
Display
Bright Backlit Display
Stack Temp.
32 Degrees to 752 Degrees F (0 Degrees to 400 Degrees C)
Nitric Oxide Measurement Range
None
Excess Air
0 to 100% Calculated
Features
Integrated Kink-Resistant Probe Hose Eliminates Leaks, Simultaneous Measurement of O2, CO and Flue Gas and Ambient Temperatures
Green Environmental Attribute
Product is Rechargeable
Minimum Oxygen Measured
0 % v/v
Digital Display Screen Type
LCD
Maximum Combustion Efficiency
120 %
Maximum Oxygen Measured
21 % v/v
Batteries Included
Yes
Maximum Operating Temperature
113 Degrees F
Battery Chemistry
Lithium
Minimum Excess Air Measured
0 %
Selectable Fuel Options
Bio Fuel 5%, Fuel Oil #2, Natural Gas, Propane, Wood 20%
Battery Voltage
5V
Minimum Combustion Efficiency
0 %
Maximum Excess Air Measured
100 %
Minimum Operating Temperature
23 Degrees F
Minimum Carbon Monoxide Measured
0 ppm
Number of Batteries Required
1
Maximum Carbon Monoxide Measured
4,000 ppm

Description

Combustion Analyzer Kit, Digital Display Screen Type LCD, Maximum Carbon Monoxide Measured 4,000 ppm, Maximum Oxygen Measured 21 Percent v/v, Minimum Oxygen Measured 0 Percent v/v, Selectable Fuel Options Bio Fuel 5 Percent, Fuel Oil #2, Natural Gas, Propane, Wood 20 Percent, Minimum Carbon Monoxide Measured 0 ppm, Maximum Combustion Efficiency 120 Percent, Minimum Combustion Efficiency 0 Percent, Maximum Excess Air Measured 100 Percent, Minimum Excess Air Measured 0 Percent

Restrictions

Hazardous material
