This item is Discontinued.

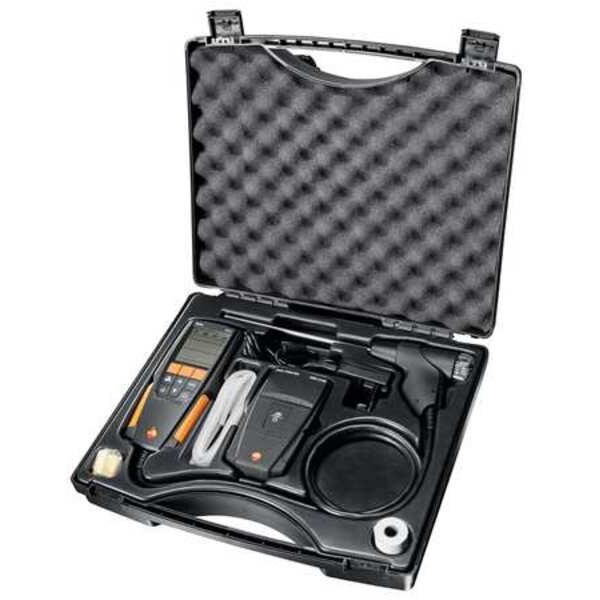

Testo Combustion Analyzer, Residential, Printer 0563 3110

Combustion Analyzer, Residential, Printer (Discontinued)

  • Mfr # 0563 3110
  • Zoro # G4678441
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
0563 3110
Zoro #
G4678441
UPC #
-
Country of Origin
Germany

Dimensions

Manufacturers Warranty Length
24 Months - Instrument, Sensors, Probe, 12 Months - Thermocouple, Rechargeable Battery
Manufacturer Warranty Length
24 mo

Details

Item
Combustion Analyzer
Type
Residential
Fuel Type
Bio Heat 5, Fuel Oil 2, Natural Gas, Propane, Wood
Combustion Efficiency
Calculated
Oxygen Concentration
0 to 21.0 vol%
Carbon Dioxide Concentration
0 to CO2 max Calculated
Primary/Ambient Air Temp.
-4 Degrees to 212 Degrees F (20 Degrees to 100 Degrees C)
Pressure/Draft
-16 to +16 In. WC - Pressure, -8 to +8 In. WC - Draft
Excess Air
0 to 100% Calculated
Includes
(2) Thermal Paper Rolls, (5) Extra Particulate Filters, (5) Pressure Plugs, IR Printer, AC Power Supply (USB), Case, Calibration Certificate, Hose, Probe with Cone, Sensors, Silicon Tubing
Nitric Oxide Measurement Range
None
Nitrogen Dioxide Measurement Range
None
Sulfur Dioxide Measurement Range
None
Battery Type
Lithium-Ion Rechargeable 1500 mAh
Carbon Monoxide Measurement Range
0 to 4000 ppm
Display
Bright Backlit Display
Stack Temp.
32 Degrees to 752 Degrees F (0 Degrees to 400 Degrees C)
Features
Integrated Kink-Resistant Probe Hose Eliminates Leaks, Simultaneous Measurement of O2, CO and Flue Gas and Ambient Temperatures, Wireless Printer with Integrated Magnets
Green Environmental Attribute
Product is Rechargeable
Number of Batteries Required
1
Digital Display Screen Type
LCD
Maximum Combustion Efficiency
120 %
Maximum Excess Air Measured
100 %
Battery Voltage
5V
Battery Chemistry
Lithium Ion
Minimum Excess Air Measured
0 %
Maximum Operating Temperature
113 Degrees F
Minimum Operating Temperature
23 Degrees F
Minimum Combustion Efficiency
0 %
Maximum Oxygen Measured
21 % v/v
Minimum Carbon Monoxide Measured
0 ppm
Minimum Oxygen Measured
0 % v/v
Selectable Fuel Options
Bio Fuel 5%, Fuel Oil #2, Natural Gas, Propane, Wood 20%
Maximum Carbon Monoxide Measured
4,000 ppm
Batteries Included
Yes

Description

Combustion Analyzer, Digital Display Screen Type LCD, Maximum Carbon Monoxide Measured 4,000 ppm, Maximum Oxygen Measured 21 Percent v/v, Minimum Oxygen Measured 0 Percent v/v, Selectable Fuel Options Bio Fuel 5 Percent, Fuel Oil #2, Natural Gas, Propane, Wood 20 Percent, Minimum Carbon Monoxide Measured 0 ppm, Maximum Combustion Efficiency 120 Percent, Minimum Combustion Efficiency 0 Percent, Maximum Excess Air Measured 100 Percent, Minimum Excess Air Measured 0 Percent

Restrictions

Hazardous material
