Timken

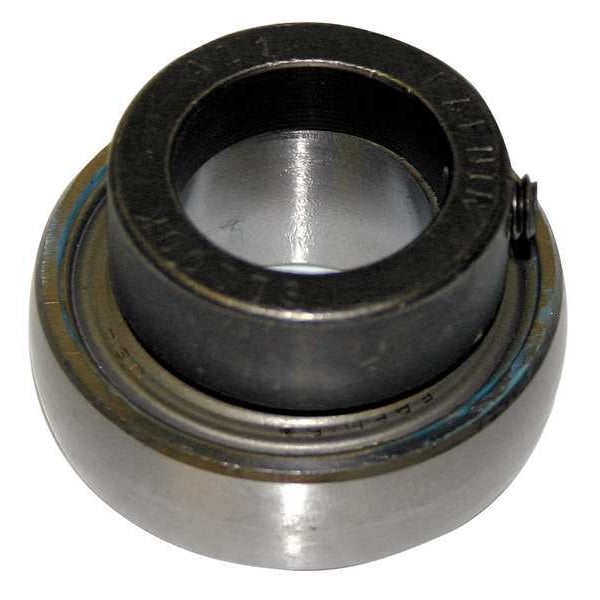

Insert Bearing, Dia. 1 In, Self-Locking

product price: $27.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bore Dia. 1 in
  • Inside Dia. 1 in
  • Series RA-RRB
  • Locking Type Self-Locking Collar
  • Outside Dia. 52 mm
See all product information

Product Information

Dimensions

Bore Dia. 1 in
Inside Dia. 1 in
Outside Dia. 52 mm
Width 31 mm
Ring End to Center Width 0.295 in
Bore Diameter 1 in
Inner Ring Outside Diameter 1.5 in
Outer Ring Width 0.591 in
Inner Ring Width 0.844 in
Outside Diameter 2 3/64 in

Details

Item Insert Bearing
Series RA-RRB
Locking Type Self-Locking Collar
Bearing Material Stainless Steel
Dynamic Load Capacity (Lb.) 3,550 lb
Load Direction Radial
Rolling Element Material Grade 52100
Closure Double Sealed
Static Radial Load Capacity 1,753.597 lbf
Plain Bearing Material Steel
Shaft Locking Type Eccentric Collar
Bearing Industry Number RA100RRB
Ring Material Alloy Steel
Bearing Insert Type Radial/Deep Groove Ball
Dynamic Radial Load Capacity 3,484.712 lbf
Ball Material Grade 52100
System of Measurement Inch
Ring Material Grade 52100
Ball Material Alloy Steel
Seal Type Contact
Lubricant Material Non-Relubricatable
Rolling Element Rows 1
Maximum Temperature 250 Degrees F
Seal Material Rubber
Rolling Element Material Alloy Steel
Bearing Insert Shape Spherical

Description

Insert Bearing, Ball Material Alloy Steel, Bearing Industry Number RA100RRB, Bearing Insert Type Radial/Deep Groove Ball, Bearing Insert Shape Spherical, Bore Diameter 1 in, Closure Double Sealed, Inner Ring Outside Diameter 1.5 in, Lubricant Material Non-Relubricatable, Maximum Temperature 250 Degrees F, Outer Ring Width 0.591 in, Outside Diameter 2 3/64 in, Plain Bearing Material Steel, Ring Material Alloy Steel, Rolling Element Material Alloy Steel, Rolling Element Rows 1, Seal Type Contact
