Shop TIMKEN

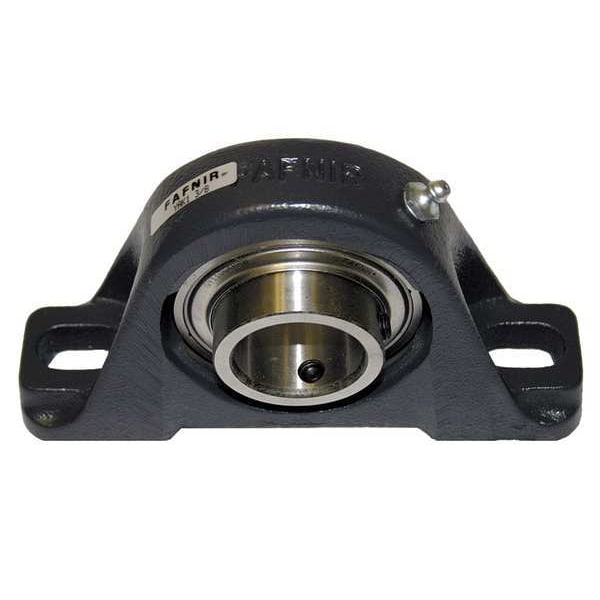

Pillow Block Bearing, Cast Iron Housing Material, Set Screw, Ball, 2-1/4 in Dia, Alloy Steel Insert Material

  • Mfr # YAK 2 1/4

  • Zoro # G8097731

product price:
$
330.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
YAK 2 1/4
Zoro #
G8097731
UPC #
087796157606
Country of Origin
Multiple

Dimensions

Bore Diameter
2-1/4 in
Center Height
2-43/64 in
Mount Hole Center-to-Center Length
7-25/64 in
Mount Hole Size
1.157 in x 0.72 in
Overall Length
9.421 in
Overall Width
2.359 in
Overall Height
5.39 in
Dimension H2
5 13/32 in
Dimension A
2 3/8 in
Dimension H
2 11/16 in
Dimension B
2 9/16 in
Dimension H1
7/8 in
Dimension J
7 13/32 in
Dimension F
3 in
Dimension E
2 3/4 in
Dimension L
5 13/32 in
Mounting Bolt Size
5/8 in
Base Height
0.874 in
Inner Ring Width
2.562 in
Wire Rope Length
9.421 in

Details

System of Measurement
Inch
Item
Pillow Block Bearing
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Insert Material
Alloy Steel
Series
YAK
Closure
Double Sealed
Temp. Range
-65 Degrees to 200 Degrees F
Finish
Powder Coated
Application
Industrial
Dynamic Radial Load Capacity
13,100 lbf
Resistance Properties
Corrosion-Resistant
Number of Mount Holes
2
Mount Type
Bolt-Through
Seal Type
Contact
Lubricant Material
NLGI #2 Equivalent
Bearing Material Grade
AISI 52100
Load Direction
Radial, Thrust
Minimum Temperature
-65 Degrees F
Features
Base-To-Center Line Height Indicator, Easy Access to Mounting Bolts, Set Screw Access, Solid, Flat Feet
Maximum Temperature
200 Degrees F
Bore Type
Cylindrical
Static Radial Load Capacity
8,080 lbf

Description

Pillow Block Bearing, Base Height 0.874 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 2 1/4 in, Bore Type Cylindrical, Center Height 2 43/64 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NLGI #2 Equivalent, Maximum Temperature 200 Degrees F, Minimum Temperature -65 Degrees F, Mount Hole Center-to-Center Length 7 25/64 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 5.39 in, Overall Length 9.421 in
