Solid Retention Knob
Mfr # PS-283
Zoro # G211178120
product price: $23.85
/eaKey Features
Thread Size
M24-3
Overall Length
2.741 in
Neck Dia.
0.549 in
Number of O-Ring(s)
0
Flange to Angle Length
0.926 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PS-283
Zoro #
G211178120
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
M24-3
Overall Length
2.741 in
Neck Dia.
0.549 in
Flange to Angle Length
0.926 in
Flange to Knob Length
1.16 in
Taper Size
BT50
Details
Item
Solid Retention Knob
Number of O-Ring(s)
0
Coolant Fed
Non-Coolant Through
Knob Angle
45 Degrees
Description

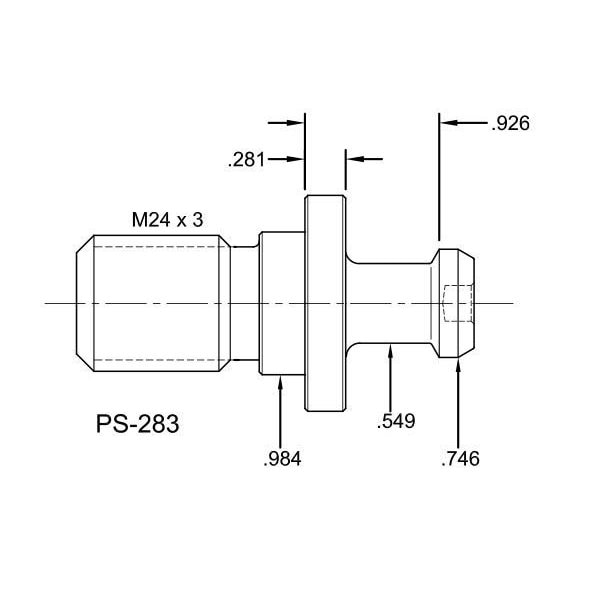

PS-283, CAT50 Solid Retention Knob with a 15 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
