Solid Retention Knob
Mfr # PS-344X15
Zoro # G511178226
product price: $20.89
/eaKey Features
Thread Size
3/4"-10
Overall Length
1.708 in
Flange to Angle Length
0.724 in
Coolant Fed
Non-Coolant Through
Taper Size
BT30
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PS-344X15
Zoro #
G511178226
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
3/4"-10
Overall Length
1.708 in
Flange to Angle Length
0.724 in
Taper Size
BT30
Neck Dia.
0.313 in
Flange to Knob Length
0.921 in
Details
Item
Solid Retention Knob
Coolant Fed
Non-Coolant Through
Knob Angle
15 Degrees
Number of O-Ring(s)
0
Description

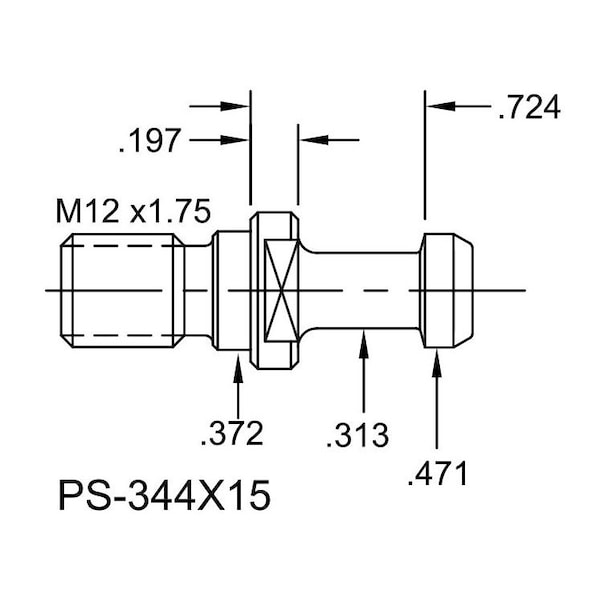

PS-344X15, BT30 Solid Retention Knob with a 15 Degree angle
- •Manufactured utilizing AMS-6274/AISI-8620 alloy steel
- •Each retention knob is carburized (hardened) to 58-62HRC with a case depth of .020-.030. Core hardness 40HRC
- •Threads are single pointed to ensure full thread depth is achieved. Our process ensures high concentricity and balanced threads
- •All Retention Knobs surface (Not just the mating surface) have a precision finish of 32 RMA micro or better
