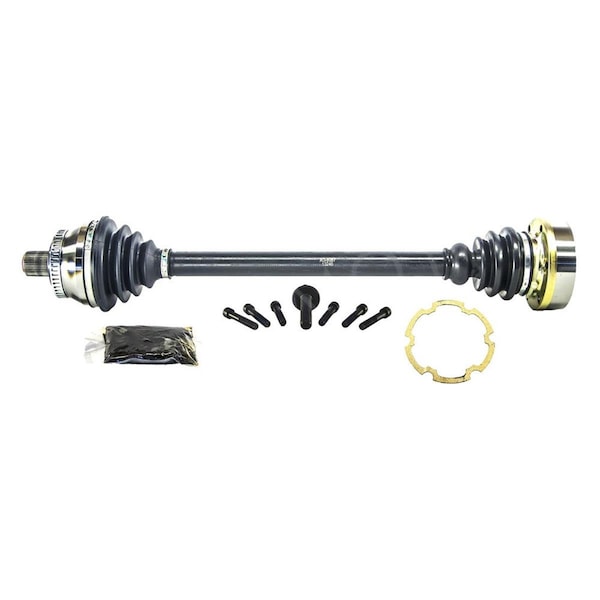

AD8087 Front Passenger Side CV Axle Shaft for 2000-2002 Audi S4

Features Designed from the ground up to meet or even exceed all oem requirements in fit, form and function. Engineered to work at varying angles, constant rotational speeds, without friction and play. Neoprene rubber boots ensure high protection against the elements on and off-road conditions. Fastened with stainless steel straps to comply the stringent engineering standards. Precision machined and heat treated center-shafts, cv joints, bearings, and races. Cv joints are packed with high-temperature, high performance moly grease. Torture tested to failure to ensure maximum durability and outstanding performance. Comes with all necessary hardware for professional and easy installation. Compatibility 2000-2002 Audi S4. Specifications ABS Ring Type: Window. ABS Tooth Count: 45. Axle Bolt Hex Size ( mm): 27 mm. Axle Bolt Length ( mm): 97 mm. Axle Bolt Thread Size: M16x1.5. Inboard Joint Bolt Allen Size ( mm): 8 mm. Inboard Joint Bolt Length: 55. Inboard Joint Bolt Thread Size: M10x1.5. Inboard Joint Type: Bolt-on. Length ( mm): 636. Location: Front Both. Measurement Type: Compressed. Number of Inboard Joint Bolt Holes: 6. Number of Outboard Joint Bolt Holes: 1. Number of Outboard Splines: 38. Outboard Joint Diameter: 98. Outboard Joint Type: Audi Style Spline Bolt. Length: 25 1/32 in. Spline Quantity: 38 Spline Outboard Joint. Country of Origin: China.
