This item is Discontinued.

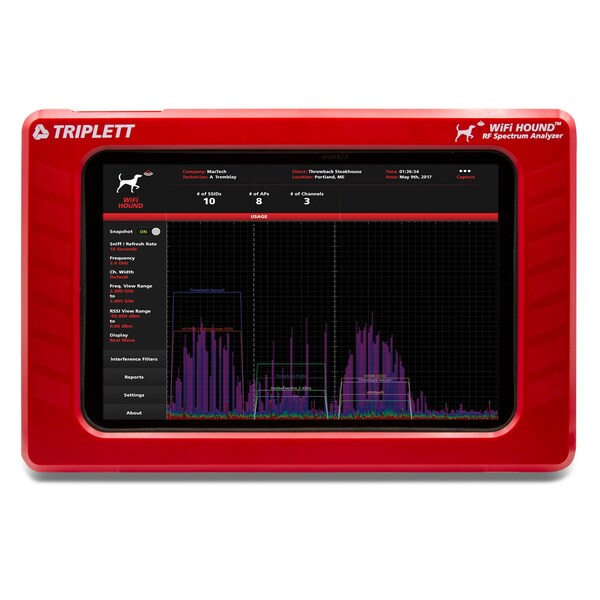

Triplett Portable RF Spectrum Analyzer, LCD, USB WFHOUND

Portable RF Spectrum Analyzer, LCD, USB (Discontinued)

  • Mfr # WFHOUND
  • Zoro # G9345145
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WFHOUND
Zoro #
G9345145
UPC #
614395001896
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Video Bandwidth
100 Hz to 1 MHz (Step) and Auto

Details

Item
Portable RF Spectrum Analyzer
Features
Automation and Electronic Bench Testing, Process Monitoring
Frequency Range
2.4 GHz to 5.85 GHz
Frequency Span
0 Hz (Zero Span), 200 kHz to 2 GHz (Step) and 3.3 GHz (Full Span)
Includes
Case, Power Cord
Frequency Resolution
2.4 GHz, 5 GHz
Input Attenuator Range
0 to 25dB (1dB Step)
Input Connector
Type N
Display
LCD
Interface
USB
Sweep Range
10 msec to 30 sec
Sweep Accuracy
+/-0.2% +/-1 Dot from 0 to 2.42 GHz, +/-1 Dot from 5.15 to 5.85 GHz
Amplitude Setting Range
-95 to 0dBm (1dB Step)
Frequency Accuracy
+/-150 kHz (5.15 to 5.85 GHz), +/-45 kHz (2.4 to 2.485 GHz)
Power Source
Lithium-Ion Battery
Frequency - Minimum
5.15 GHz
Input Attenuator - Minimum
0 dB
Sweep - Minimum
10 sec
Frequency - Maximum
5.85 GHz
Amplitude Setting - Maximum
0 dBm
Sweep - Maximum
10 sec
Frequency Span - Maximum
0 Hz (Zero Span), 2 GHz (Step), 3.3 GHz (Full Span)
Input Connector Type
Type N
Input Attenuator - Maximum
25 dB
Display Type
LCD
Frequency Span - Minimum
200 kHz (Step)
Amplitude Setting - Minimum
-95 dBm
Interface Type
USB

Description

Portable RF Spectrum Analyzer, Frequency Range 2.4 GHz to 5.85 GHz, Frequency Span 0 Hz (Zero Span), 200 kHz to 2 GHz (Step) and 3.3 GHz (Full Span), Frequency Accuracy +/-150 kHz (5.15 to 5.85 GHz), +/-45 kHz (2.4 to 2.485 GHz), Frequency Resolution 2.4 GHz, 5 GHz, Amplitude Setting Range -95 to 0dBm (1dB Step), Input Attenuator Range 0 to 25dB (1dB Step), Video Bandwidth 100 Hz to 1 MHz (Step) and Auto, Sweep Range 10 msec to 30 sec
