This item is Discontinued.

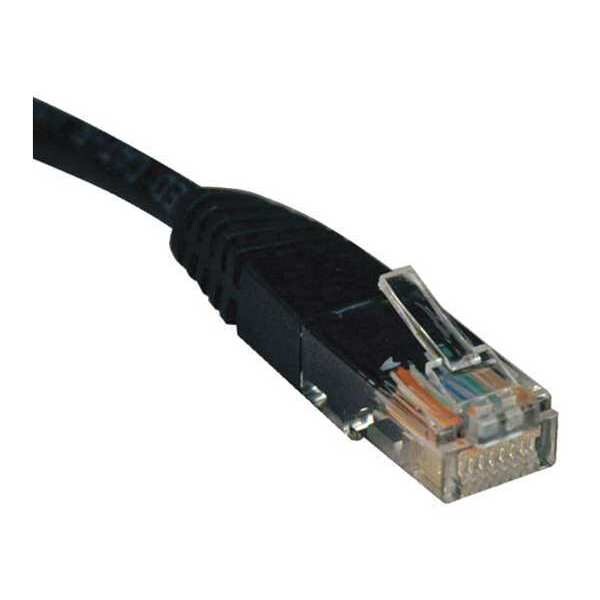

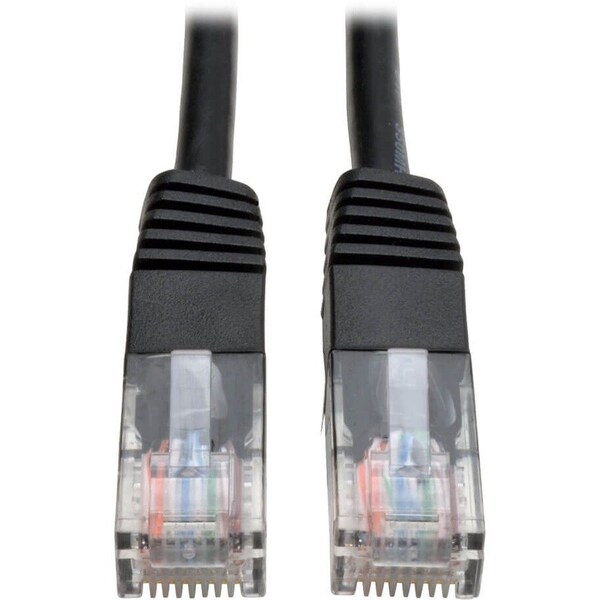

Tripp Lite Cat5e Cable, Molded, RJ45 M/M, Black, 6ft N002-006-BK

Cat5e Cable, Molded, RJ45 M/M, Black, 6ft (Discontinued)

  • Mfr # N002-006-BK
  • Zoro # G5186155
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
N002-006-BK
Zoro #
G5186155
UPC #
037332155191
Country of Origin
China

Dimensions

Length - Patch Cord
6 ft
Cable Length
6 ft
Maximum Bandwidth as Tested
350 MHz
Cable Outer Diameter (OD)
5.0 mm
Bandwidth per TIA Standard
100 MHz
Cable Length (ft.)
6

Details

Item
Cat5e Cable,Molded,RJ45 M/M,Black,6ft
Connector Type - Patch Cord
RJ45 (Male); RJ45 (Male)
Transmission Speed
1 Gbps
Cable Jacket Color
Black
Cable Jacket Material
PVC
Cable Type
Category 5e
Shielded
No
Jacket Material
Polyvinyl Chloride (PVC)
Connector Type
Molded
Boot Type
Snagless
Category - Data Cable
5/5e
Jacket Color
Black
Features
Stranded, Molded, Booted
Shielding Type
UTP
Conductor Material
Stranded Copper
Solid / Stranded
Stranded
Product Color
Black
Connector on First End Details
1 x RJ-45 Network - Male
Certifications & Standards
IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, ETL (category 5e draft 11)
Cable Characteristic
Patch Cable
Connector on Second End Details
1 x RJ-45 Network - Male
Conductor
Copper
Product Name
N002-006-BK Cat5e UTP Patch Cable
Product Type
Network Cable
Wiring Configuration
EIA/TIA 568B
PoE Type
Type 2 PoE+ (30W, IEEE 802.3at)
Technology
Cat5/5e
Operating Temperature Range
14° to 104°F (-10° to 40°C)
Storage Temperature Range
5° to 122°F (-15° to 50°C)
Cable Shielding
UTP
Product Compliance
CE (Europe); IEEE 802.3ab 1000Base-T; IEEE 802.3at PoE+; UKCA
Storage Humidity Range
0% to 90% RH, Non-Condensing
Power Over Cable (PoC) Support
No
Contact Plating
Gold
Number of Conductors
4 Pair
IEEE Standards Supported
802.3ab; 802.3at
Package Includes
6-ft. Cat5e Black Patch Cable Molded 350MHz
Side B - Connector 1
RJ45 (MALE)
Network Compatibility
1 Gbps (Gigabit)
Product Certifications
UL Listed; cUL Listed
Cable Jacket Rating
CM
Operating Humidity Range
0% to 90% RH, Non-Condensing
Conductor Gauge
26 AWG
Side A - Connector 1
RJ45 (MALE)

Description

Cat5e Cable,Molded,RJ45 M/M,Black,6ft
