Mounting
Tower/Wall/Desktop
Backup Time (Half/Full Load)
8.6 min/2 min
Outlet Type
(6) Surge; (6) UPS/Surge
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Communications Cable
USB interface cable included
Primary Form Factor
Desktop
Battery Access
Battery access door
Nominal Output Voltage(s) Supported
110V; 115V; 120V
DC System Voltage (VDC)
12
Audible Alarm
UPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
UPS AC Suppression Response Time
Instantaneous
Battery Replacement Description
Replaceable internal batteries (see manual)
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Low Voltage Transfer to Battery Power (Setpoint)
95
EMI / RFI AC Noise Suppression
Yes
Communications Interface
USB (HID enabled)
Output AC Waveform (Battery Mode)
PWM sine wave
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Rated input current (Maximum Load)
10A
Recommended Electrical Service
15A 120V
High Voltage Transfer to Battery Power (Setpoint)
145
Green Energy-Saving Features
Greater than 95% efficiency - GREEN UPS
High Availability UPS Features
Battery Independent Restart
Full Load Runtime (min.)
2 min. (450w)
Nominal Input Voltage(s) Supported
120V AC
UPS Certifications
ENERGY STAR Qualified; Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Switches
Switch controls power off/on status
Operating Elevation (ft.)
Up to 10,000 ft.
Input Circuit Breakers
10A
Output Watt Capacity (Watts)
450
Relative Humidity
0 to 90%, non-condensing
PowerAlert Software
For local monitoring via the UPS™s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
UPS AC Suppression Joule Rating
316
Output Voltage Regulation (Line Mode)
120V (±20%)
AC Mode BTU / Hr. (Full Load)
8.3
Internal UPS Replacement Battery Cartridge
RBC51
Output Volt Amp Capacity (VA)
750
Output Voltage Regulation (Battery Mode)
120V (±10%)
UPS Certification Details
UL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS B; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
Storage Temperature Range
+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
Installation Form Factors Supported with Included Accessories
Tower; Ultra-compact desktop; Wallmount
Battery Recharge Rate (Included Batteries)
8 hours (10% to 90%)
UPS Dataline Suppression
1 line TEL/DSL or Ethernet
Hot-Swap PDU options
PDUB15 (2U / 8 5-15R outlets)
Half Load Runtime (min.)
8.6 min. (225w)
LED Indicators
Set of 3 status LEDs indicate operating mode, low-battery, overload, replace-battery and fault conditions
AC Mode Efficiency Rating (100% Load)
>98%
Transfer Time
6 milliseconds typical (10 milliseconds max)
Product Certifications
RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778
Product Compliance
ENERGY STAR Qualified; FCC Part 15 Class B (USA)
Frequency Compatibility Details
Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal.
Voltage Regulation Description
Input voltage range of 95 to 145
Package Includes

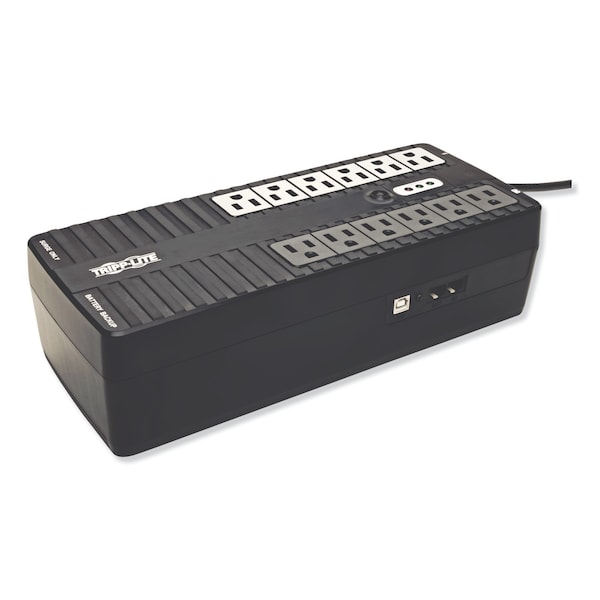

INTERNET750U 750VA 450W 120V Standby UPS with 12 Outlets;USB cable;Owner's manual
Output Capacity (Watts)
450
UPS Applications
Computer/Peripherals; Audio/Video; Retail/Point of Sale; Hospitality
Output Capacity Details
6.3A @ 120V. 110%±10%,GOES TO FAULT AFTER 5MIN; 120%±10%,GOES TO FAULT IMMEDIATELY 110%±10%,SHUTS DOWN IN 5 SEC; 120%±10%, SHUTS DOWN IMMEDIATELY
NEMA Plug Configuration
5-15P
NEMA Receptacle Configuration
(12) 5-15R
