Shop All Chain Links
Tsubaki

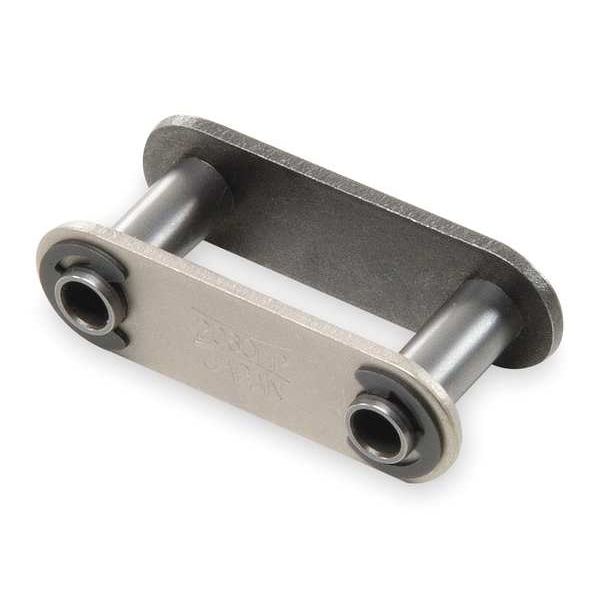

Connecting Link, Hollow Pin

product price: $12.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Chain Link Type Hollow Pin Conveyor
  • Industry Chain Size C2060
  • Chain Link Material Carbon Steel
  • Industry Chain Pitch 1 1/2 in
  • Number of Strands 1
See all product information

Product Information

Dimensions

Industry Chain Size C2060
Chain Link Overall Width 1.225 in
Chain Roller Dia. 0.469 in
Width Between Roller Link Plates 0.5 in
Length (In.) 1.500
Pin Length (In.) 1.055
Bushing Dia. 0.469 in
Bushing Dia. (In.) 0.469
Overall Width (In.) 1.225
Outside Pin Dia. 0.33 in
Pin Length 1.055 in
Outside Pin Dia. (In.) 0.330
Roller Link Plate Height (In.) 0.713
ANSI Chain Size C2060H
Width Between Roller Link Plates (In.) 0.500
Inside Pin Dia. 0.33 in
Roller Dia. (In.) 0.469
Roller Link Plate Height 0.713 in
Plate Height 43/64 in
Inside Width 1/2 in
Chain Overall Width 1 1/16 in
Roller Diameter 15/32 in
Pin Outside Diameter 21/64 in

Details

Roller Chain Link Item Connecting Link
Roller Chain Link Type Hollow Pin Conveyor
Chain Link Material Carbon Steel
Industry Chain Pitch 1 1/2 in
Number of Strands 1
Agency Compliance American National Standards Institute (ANSI)
Connecting End to Center Line (In.) 0.561
Pin Type Riveted
Lubrication SAE 10 to SAE 50
Temp. Range 15 Degrees to 300 Degrees F
Pin Link Plate Thickness (In.) 0.125
Rivet End to Center Line 0.494 in
Material Steel
Max. Allowable Load (Lb.) 948
Pitch 1 1/2 in
Tensile Strength (Lb.) 5950
Pin Link Plate Thickness 0.125 in
Tensile Strength 5,950 lbf
Max. Allowable Load 948 lb
Item Connecting Link
Connecting End to Center Line 0.561 in
Type Hollow Pin
Rivet End to Center Line (In.) 0.494
Chain Number C2060H
Heavy Series Yes
Plate Thickness 3/32 in
Pin Contruction Riveted Pin
Pitch Type Double Pitch
Minimum Operating Temperature 15 Degrees F
Roller Chain Standard ANSI
Maximum Operating Temperature 300 Degrees F
Link Type Connecting Link
Working Load Limit 948 lb
Standards ANSI
Chain Construction Riveted Pin

Description

Connecting Link, Chain Construction Riveted Pin, Material Steel, Chain Overall Width 1 1/16 in, Chain Number C2060, Roller Diameter 15/32 in, Pitch 1 1/2 in, Link Type Connecting, Number of Strands 1, Heavy Series Yes, Inside Width 1/2 in, Lubrication SAE 10 to SAE 50, Maximum Operating Temperature 300 Degrees F, Minimum Operating Temperature 15 Degrees F, Pin Contruction Riveted Pin, Pin Outside Diameter 21/64 in, Pitch Type Double Pitch, Plate Height 43/64 in, Plate Thickness 3/32 in
