Tsubaki

Roller Link, Double Pitch

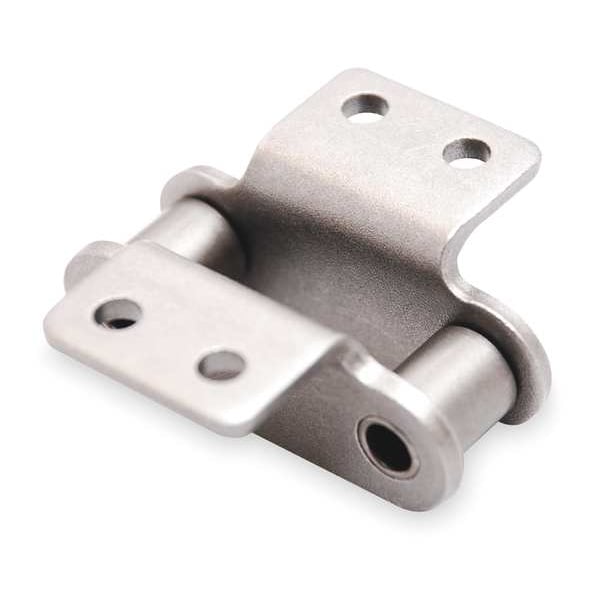

Tsubaki Roller Link,  Double Pitch C2080HASK2RL
Hover or click to zoom Tap to zoom
  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: K-2 Heavy Conveyor
  • Industry Chain Size: C2080H
  • Chain Link Material: 600 Stainless Steel
  • Industry Chain Pitch: 2 in
  • Number of Strands: Single
  • Chain Link Overall Width: 1.543 in
  • Chain Roller Dia.: 0.625 in
See full product details
$66.33

Subtotal: $66.33

Tsubaki #C2080HASK2RL Specifications

  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: K-2 Heavy Conveyor
  • Industry Chain Size: C2080H
  • Chain Link Material: 600 Stainless Steel
  • Industry Chain Pitch: 2 in
  • Number of Strands: Single
  • Chain Link Overall Width: 1.543 in
  • Chain Roller Dia.: 0.625 in
  • Width Between Roller Link Plates (In.): 0.625
  • Rivet End to Center Line (In.): 0.720
  • Agency Compliance: American National Standards Institute (ANSI)
  • Outside Pin Dia.: 0.312 in
  • Roller Link Plate Height (In.): 0.906
  • Inside Pin Dia.: 0.312 in
  • Pin Link Plate Thickness (In.): 0.906
  • Pin Link Plate Thickness: 0.906 in
  • Pitch: 2"
  • Outside Pin Dia. (In.): 0.312
  • Type: K-2 Attachment
  • Material: Stainless Steel
  • ANSI Chain Size: C2080HAS
  • Pin Type: Cottered
  • Item: Roller Attachment Link
  • Tensile Strength: 15,400 lb
  • Pin Length (In.): 1.543
  • Overall Width (In.): 1.543
  • Tensile Strength (Lb.): 15,400
  • Roller Link Plate Height: 0.906 in
  • Temp. Range: -40 Degrees to 750 Degrees F
  • Lubrication: SAE 10 to SAE 50
  • Pin Length: 1.543 in
  • Length (In.): 2.000
  • Max. Allowable Load (Lb.): 2400
  • Connecting End to Center Line (In.): 0.823
  • Rivet End to Center Line: 0.72 in
  • Max. Allowable Load: 2,400 lb
  • Width Between Roller Link Plates: 0.625 in
  • Connecting End to Center Line: 0.823 in
  • Roller Dia. (In.): 0.625
  • Link Type: Roller Attachment Link
  • Chain Number: C2080H
  • Centerline to Hole Center: 0.72 in
  • Pin Contruction: Cottered Pin
  • Centerline to Attachment End: 0.823 in
  • Plate Height: 0.906 in
  • Roller Diameter: 5/8 in
  • Material Grade: 600
  • Attachment Type (Broad - application): Tab
  • Attachment Type: Tab
  • Plate Thickness: 0.625 in
  • Standards: ANSI
  • For Chain Number: C2080H
  • Minimum Operating Temperature: -40 Degrees F
  • Extended Pin Diameter: 0.312 in
  • For Chain Style (combined): Plain Stainless Steel
  • Maximum Operating Temperature: 750 Degrees F
  • For Chain Style: Stainless Steel Conveyor Chains
  • Chain Overall Width: 1.543 in
  • Attachment Type (Broad - style): Tab
  • Number of Tab Holes: 1
  • Attachment Number: K-2
  • Country of Origin (subject to change): Japan

Description

Roller Attachment Link, Attachment Number K-2, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 1.543 in, Chain Number C2080H, Roller Diameter 5/8 in, Finish Plain, Pitch 2 in, Link Type Roller Attachment, Centerline to Attachment End 0.823 in, Centerline to Hole Center 0.72 in, Extended Pin Diameter 0.312 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
