Tsubaki

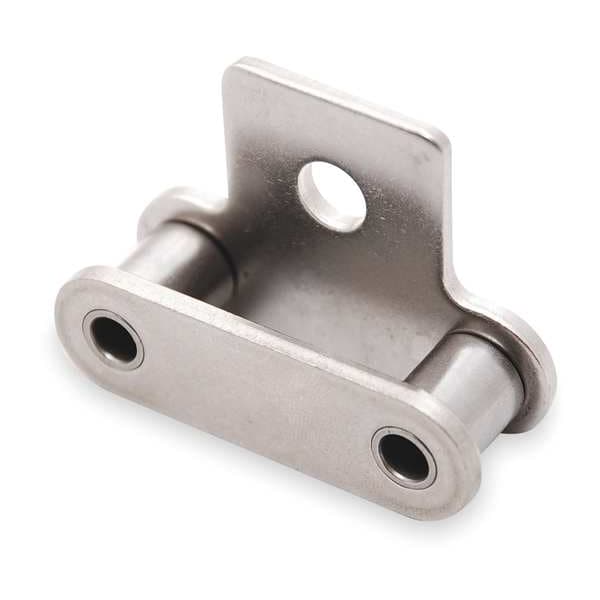

Roller Link, SA-1 Attachment

Tsubaki Roller Link, SA-1 Attachment C2052ASSA1RL
Tap to zoom
Hover or click to zoom
$35.19
  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: SA-1 Conveyor
  • Industry Chain Size: C2052
See full product details
Orders over $75 ship free.

Total: $35.19

Tsubaki #C2052ASSA1RL Specifications

  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: SA-1 Conveyor
  • Industry Chain Size: C2052
  • Chain Link Material: 600 Stainless Steel
  • Industry Chain Pitch: 1 1/4 in
  • Number of Strands: Single
  • Chain Link Overall Width: 0.878 in
  • Chain Roller Dia.: 0.75 in
  • Outside Pin Dia. (In.): 0.200
  • Length (In.): 1.250
  • Max. Allowable Load (Lb.): 231
  • Lubrication: SAE 10 to SAE 50
  • Outside Pin Dia.: 0.2 in
  • Rivet End to Center Line: 0.406 in
  • Roller Dia. (In.): 0.750
  • Item: Roller Attachment Link
  • Width Between Roller Link Plates: 0.375 in
  • Pin Type: Riveted
  • Material: Stainless Steel
  • Width Between Roller Link Plates (In.): 0.375
  • Temp. Range: -40 Degrees to 750 Degrees F
  • Roller Link Plate Height: 0.591 in
  • Agency Compliance: American National Standards Institute (ANSI)
  • Type: SA-1 Attachment
  • Roller Link Plate Height (In.): 0.591
  • Max. Allowable Load: 231 lb
  • Pitch: 1.25"
  • Connecting End to Center Line: 0.469 in
  • ANSI Chain Size: C2052AS
  • Inside Pin Dia.: 0.2 in
  • Pin Link Plate Thickness (In.): 0.080
  • Pin Length (In.): 0.875
  • Pin Length: 0.875 in
  • Rivet End to Center Line (In.): 0.406
  • Pin Link Plate Thickness: 0.08 in
  • Connecting End to Center Line (In.): 0.469
  • Overall Width (In.): 0.878
  • Country of Origin (subject to change): Japan

Description

Roller Attachment Link, SA-1 Conveyor, Industry Chain Size C2052, 600 Stainless Steel Chain Link Material, Industry Chain Pitch 1 1/4 in, Chain Link Overall Width 0.878 in, Chain Roller Dia. 0.75 in, Width Between Roller Link Plates 0.375 in, Roller Link Plate Height 0.591 in, Connecting End to Center Line 0.469 in, Rivet End to Center Line 0.406 in, Pin Length 0.875 in, Inside Pin Dia. 0.2 in, Outside Pin Dia. 0.2 in, Pin Link Plate Thickness 0.08 in, Riveted Pin Type
