Tsubaki

Roller Link, SK-2 Attachment

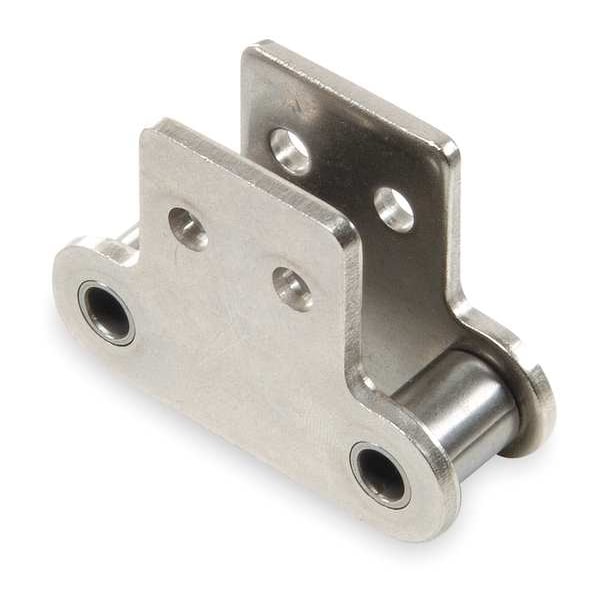

Tsubaki Roller Link, SK-2 Attachment C2040ASSK2RL
Tap to zoom
Hover or click to zoom
$22.95
  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: SK-2 Conveyor
  • Industry Chain Size: C2040
See full product details
Orders over $75 ship free.

Total: $22.95

Tsubaki #C2040ASSK2RL Specifications

  • Roller Chain Link Item: Roller Attachment Link
  • Roller Chain Link Type: SK-2 Conveyor
  • Industry Chain Size: C2040
  • Chain Link Material: 600 Stainless Steel
  • Industry Chain Pitch: 1 in
  • Number of Strands: Single
  • Chain Link Overall Width: 0.717 in
  • Chain Roller Dia.: 0.312 in
  • Overall Width (In.): 0.717
  • Max. Allowable Load (Lb.): 150
  • Pin Link Plate Thickness (In.): 0.060
  • Lubrication: SAE 10 to SAE 50
  • Pin Length (In.): 0.705
  • Connecting End to Center Line: 0.38 in
  • Rivet End to Center Line (In.): 0.325
  • Width Between Roller Link Plates: 0.312 in
  • Roller Link Plate Height: 0.472 in
  • Material: Stainless Steel
  • Length (In.): 1.000
  • Pin Link Plate Thickness: 0.06 in
  • Pitch: 1"
  • Pin Type: Riveted
  • Connecting End to Center Line (In.): 0.380
  • Outside Pin Dia.: 0.156 in
  • Roller Link Plate Height (In.): 0.472
  • Pin Length: 0.705 in
  • Outside Pin Dia. (In.): 0.156
  • Roller Dia. (In.): 0.312
  • ANSI Chain Size: C2040AS
  • Type: SK-2 Attachment
  • Max. Allowable Load: 150 lb
  • Temp. Range: -40 Degrees to 750 Degrees F
  • Agency Compliance: American National Standards Institute (ANSI)
  • Rivet End to Center Line: 0.325 in
  • Inside Pin Dia.: 0.156 in
  • Item: Roller Attachment Link
  • Width Between Roller Link Plates (In.): 0.312
  • Country of Origin (subject to change): Japan

Description

Roller Attachment Link, SK-2 Conveyor, Industry Chain Size C2040, 600 Stainless Steel Chain Link Material, Industry Chain Pitch 1 in, Chain Link Overall Width 0.717 in, Chain Roller Dia. 0.312 in, Width Between Roller Link Plates 0.312 in, Roller Link Plate Height 0.472 in, Connecting End to Center Line 0.38 in, Rivet End to Center Line 0.325 in, Pin Length 0.705 in, Inside Pin Dia. 0.156 in, Outside Pin Dia. 0.156 in, Pin Link Plate Thickness 0.06 in, Riveted Pin Type
