Tycon Systems Tycon Systems EZBR-Ultra2-LR 100Mbps Long Range Point To Point Bridge System - Plug And Play; 2GHz EZBR-Ultra2-LR

This item is Discontinued.

Tycon Systems

Tycon Systems EZBR-Ultra2-LR 100Mbps Long Range Point To Point Bridge System - Plug And Play; 2GHz (Discontinued)

Mfr # EZBR-Ultra2-LR
Zoro # G703797594
Country of Origin China
Category Wireless Routers
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EZBR-Ultra2-LR
Zoro #
G703797594
UPC #
-
Country of Origin
China

Description

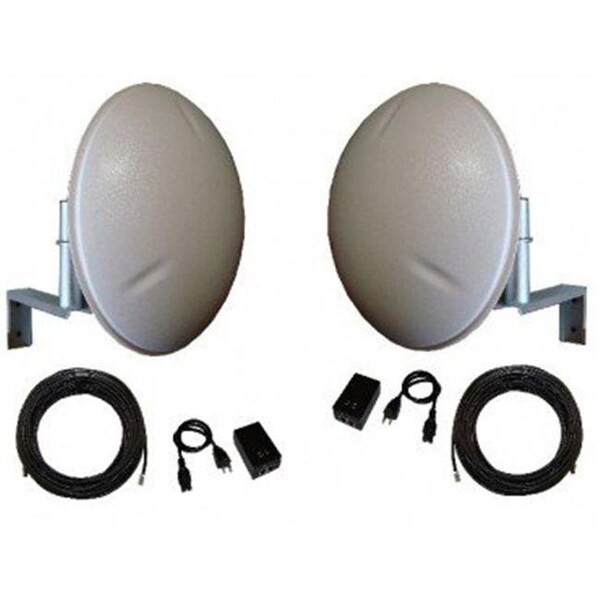

The product is a long range high capacity 100Mbps+ and high power 250mW outdoor wireless bridge system operating in the 2.4GHz unlicensed spectrum. The complete system allows for ultra high bandwidth connections between 2 buildings up to 8 miles or more apart with good line of sight. The ulra2 creates a transparent bridge between 2 sides and passes all network traffic including VPN and DHCP. You can think of it like connecting a CAT5 Ethernet cable between the 2 points.

Features
  • High Power Electronics and powerful advanced MIMO antenna
  • True Plug and Play
  • 64 and 128bit WEP, WPA and WPA2 Encryption
  • Web-based configuration
  • Power over Ethernet - Antennas can be mounted up to 100 m. from the power source
  • Transparent Bridge
Specifications
  • Data Rates - 6-150 Mbps
  • Operating Distance - up to 15 miles line of sight
  • Network Topology - Ad-Hoc, Infrastructure
  • Antenna - 2.4GHz 18dBi Dish Antenna, 8 deg AZ and 8 deg EL Beam width, >23dB front to back
  • Operation Modes - Point to Point Bridge, Access Point, Client Bridge or Router
  • RF Frequency Band - 2412 ~ 2462 MHz
  • Modulation Technology - 802.11g: OFDM, 802.11n: TDMA
  • Operating Channels - 2.4GHz 12 channels supported at 40MHz width
  • Receive Sensitivity - 802.11g/n: -94 +/-2dB @ 14Mbps, 802.11n: -75 +/-2dB @ 300Mbps
  • Operating Temperature - 30°C to 75°C
  • Storage Temperature - 40°C to 80°C
  • Firmware Upgrade - Upgrade firmware via web browser
  • Processor - Atheros MIPS 24KC 400Mhz
  • Interface - 10/100Mbps RJ-45 LAN Port
  • 75 ft. CAT5 outdoor cables
  • US or EU power cord
