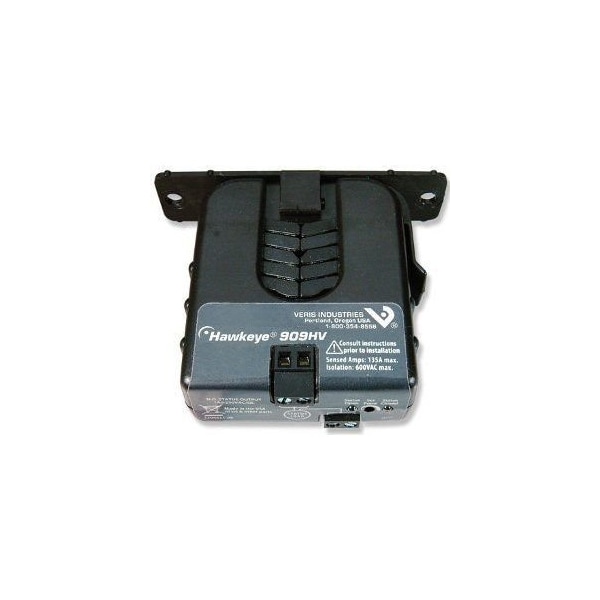

HIGH VOLTAGE CURRENT SWITCH
Mfr # H909HV
Zoro # G324269296
product price:Â $180.99
/ea
Free Shipping & Returns
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
H909HV
Zoro #
G324269296
UPC #
-
Country of Origin
United States
Description
**Current Switch:** * Adjustable Trip Point* 2.5-135 Amperage Range* Normally Open 1.0A250VAC* 2.5A or less Minimum Trip Point* Split-Core Housing* Sensor Power Induced from monitored conductor* Insulation Class 600VAC RMS* Frequency Range 50/60 Hz* Temperature Range -15 deg. to 60 deg. C (5 deg. to 140 deg. F)* Humidity Range 10-90% RH, non-condensing* Hysteresis 10% (typical)* Terminal Block Maximum Wire Size 14 AWG* Terminal Block Torque (nominal) 4 in-lbs (0.45 N-m)* Agency Approvals UL 508 open device listing CE:EN61010-1:2001-02, CAT III, deg. 2, basic insulation
Restrictions
This item has been restricted from sale in the following states:
CA
