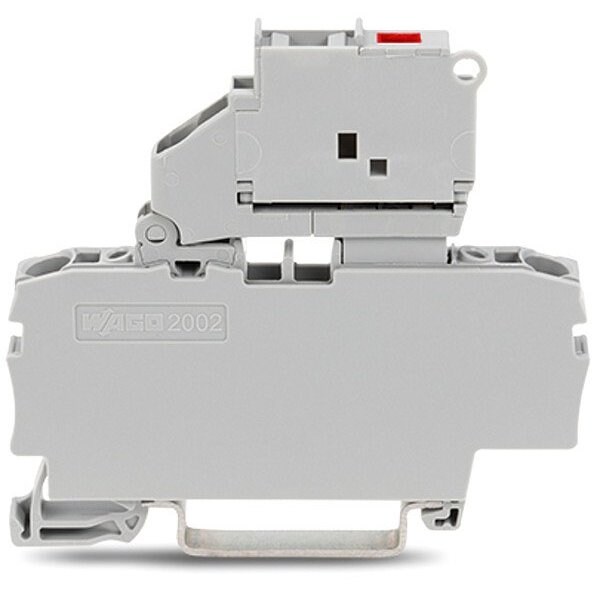

Terminal Block, 2.6" L, 250V, Gray

  • Mfr # 2002-1611/1000-836

  • Zoro # G222935392

product price:  $15.29
/ea

Key Features

Terminal Block Type
Disconnect
Maximum Voltage
250 V
Overall Depth
0.24 in
Number of Connections
2
Wire Rope Length
2.6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1611/1000-836
Zoro #
G222935392
UPC #
-
Country of Origin
China

Dimensions

Overall Depth
0.24 in
Wire Rope Length
2.6 in
For Fuse Length
20 mm
For Minimum Wire Size
22 AWG
For Maximum Wire Size
12 AWG
Strip Length
15/32 in
For Fuse Diameter
5 mm
For Channel Rail Size
35 mm
Overall Length
2.6 in

Details

Terminal Block Type
Disconnect
Maximum Voltage
250 V
Number of Connections
2
Circuit Protection Type
Fuse
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Item
Terminal Block
Minimum Operating Temperature
-60 Degrees C
Series
2002
Housing Color
Gray
Number of Poles
1
Current
6 A
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, LR EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Number of Tiers
1
Connection Type
Push-In
UL 94 Flammability Rating
V-0
For Conductor Type
Solid, Stranded
Special Features
2 Jumper Slots, Front-Entry Wiring
Housing Material
Polyamide 66
For Conductor Material
Copper

Description

Terminal Block, Circuit Protection Type Fuse, Connection Type Push-In, Current 6 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 250 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 5 mm, For Fuse Length 20 mm, Overall Depth 0.24 in, Overall Length 2.6 in
