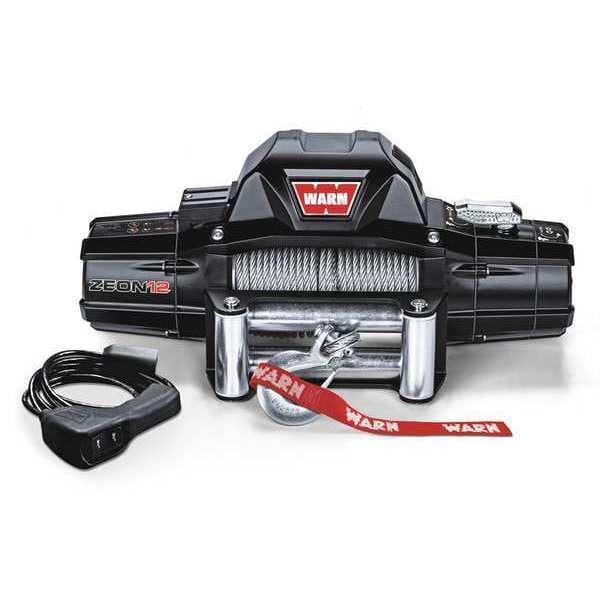

Warn Electric Winch, HP, 12VDC ZEON 12

This item is Discontinued.

Warn

Electric Winch, HP, 12VDC (Discontinued)

Mfr # ZEON 12
Zoro # G8033636
UPC # 012748891208
Country of Origin Mexico
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ZEON 12
Zoro #
G8033636
UPC #
012748891208
Country of Origin
Mexico
Electric Winch Item
Electric Winch
Winch Type
Pulling
Voltage Rating
12V DC
1st Layer Load Capacity
12,000 lb
1st Layer Line Speed
3.3 fpm
Rope Material
Wire
Full Load Amps
438 A
Winch Gear Type
3-Stage Planetary
Item
Electric Winch
Clutch Type
Rotating Ring Gear
1st Layer Line Pull
12,000 lb.
No Load Line Speed
28.1 fpm
Series
Zeon
Pulley Block
No
Winch Gear Ratio
216:1
Gear Ratio
216:1
Gear Type
Planetary
Free Spooling Clutch Type
Lever
Clutch Release
Yes
Full Load Line Speed
3.2 fpm
Mechanical Brake
Yes
Body Material
Steel
Resistance Properties
Corrosion Resistant, Waterproof
Includes Brake
Brake Included
Compatible Line
Wire Rope
Operation
Pulling
Body Finish
Powder Coated
Controls
Handheld
Product Type
Electric Winch
Included Components
Clutch Release, Brake
Maximum Current
469 A
Max Drum Capacity per Line Dia
80 ft per 3/8 in
Color
Black
Maximum Pulling Capacity
12,000 lb
Number of Gear Settings
3
Operating Voltage
12V DC
Voltage
12V DC
Wire Color
Black

Dimensions

Overall Height
10 17/32 in
Overall Width
7 27/32 in
Included Rope Length
80 ft
Control Pendant Cord Length
12 ft
Manufacturers Warranty Length
7 yr Electric, Limited Lifetime Mechanical
Included Rope Dia.
3/8 in
Overall Length
24 1/4 in
Line Length
80 ft
Controller Cord Length
12 ft
Mfr. Warranty Length
7 yr Limited (Electrical); Limited Lifetime (Mechanical)
Included Line Diameter
2/5 in
Wire Rope Length
24 1/4 in
Length
24 1/4 in

Description

Electric Winch, 1st Layer Line Speed 3.3 fpm, 1st Layer Load Capacity 12,000 lb, Operating Voltage 12V DC, Maximum Current 469 A, Number of Gear Settings 3, Gear Ratio 216:1, Gear Type Planetary, Line Length 80 ft, Clutch Type Rotating Ring Gear, Controls Handheld, Body Material Steel, Color Black, Compatible Line Wire Rope, Controller Cord Length 12 ft, Maximum Drum Capacity per Line Diameter 80 ft per 3/8 in, Included Components Clutch Release, Brake, Included Line Diameter 2/5 in
