  11. Indexable Insert Drill, 40.00mm, TCF, Flute Length: 255.20mm

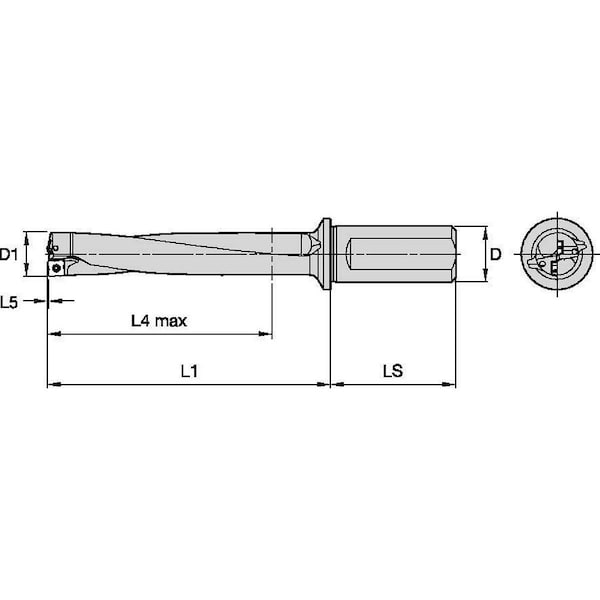

Widia Indexable Insert Drill, 40.00mm, TCF, Flute Length: 255.20mm TCF430R5SLR40MF - main

Indexable Insert Drill, 40.00mm, TCF, Flute Length: 255.20mm

  • Mfr # TCF430R5SLR40MF

  • Zoro # G3760749

product price: $803.99
/ea
Free Shipping & Returns

Key Features

Diameter
40.00mm
Ratio
5xD
Shank Length
70.00mm
Overall Length
331.53mm
Shank Dia.
40.00mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF430R5SLR40MF
Zoro #
G3760749
UPC #
4050841111256
Country of Origin
Bulgaria

Dimensions

Diameter
40.00mm
Shank Length
70.00mm
Overall Length
331.53mm
Shank Dia.
40.00mm
Flute Length
255.20mm
Depth x Dia. Ratio
5xD
Min. Drill Dia.
43.00mm
Max. Drilling Depth
216.53mm

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Central Insert Style
TCF
Flute Type
Slow Spiral
Standards
ISO 9766
ISO Number
TCF430R5SLR40MF
Flanged Shank
Yes
Toolholder Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Number of Inserts
2
Shank Type - Machining
Round with Flat and Side Lock
Coolant Fed
Coolant Through
ANSI Code
TCF430R5SLR40MF
Spiral Direction
Right Hand
Number of Coolant Holes
2
Measurement System
Metric

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 216.53mm, TCF430R5SLR40MF, TCF, Coolant Through
