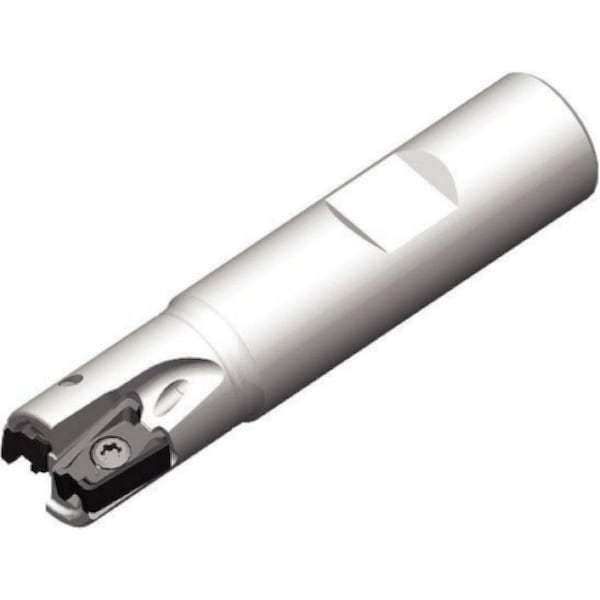

Widia Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut VSM490D016Z02B16XN10 - main

Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut

  • Mfr # VSM490D016Z02B16XN10

  • Zoro # G3789954

product price:  $387.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-10
Overall Length
74.00mm
Depth of Cut
10.00mm
Material - Machining
High Speed Steel
Insert Size
100408
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VSM490D016Z02B16XN10
Zoro #
G3789954
UPC #
4059782480131
Country of Origin
Mexico

Dimensions

Overall Length
74.00mm
Depth of Cut
10.00mm
Insert Size
100408
Shank Dia.
16.00mm
Head Projection Length
25.00mm
Shank Length
49.00mm
Min. Cutting Dia.
16.00mm

Details

Item
Indexable Profiling End Mill
Series
VSM490-10
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Rectangle Mill
Rake
-23.7 Degrees Radial, -8 Degrees Axial
Cutting Application
Face Milling, Side/Shoulder Milling: Square End
Coolant Fed
Coolant Through
Insert Holding Type
Screw
Number of Coolant Holes
2
Toolholder Style
XN10
ISO Number
VSM490D016Z02B16XN10
ANSI Code
VSM490D016Z02B16XN10
Compatible Hardware
Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9
Number of Inserts
2
Insert Style
XNGU SRMM
Shank Type - Machining
Weldon Flat
Max. Speed
48,000 RPM
Features
Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Lower Cutting Forces and Real Soft Cutting Action, Perfect Fit for Taper 40 Spindles and Driven Units, Reduced Shanks Available
Side Cutting Edge Angle
90 Degrees

Description

Indexable Profiling End Mill, Depth of Cut 10.00mm, Shank Dia. 16.00mm, Overall Length 74.00mm, ANSI Code VSM490D016Z02B16XN10, Compatible Hardware Anti-Seize Lubricant, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP 9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side/Shoulder Milling: Square End
