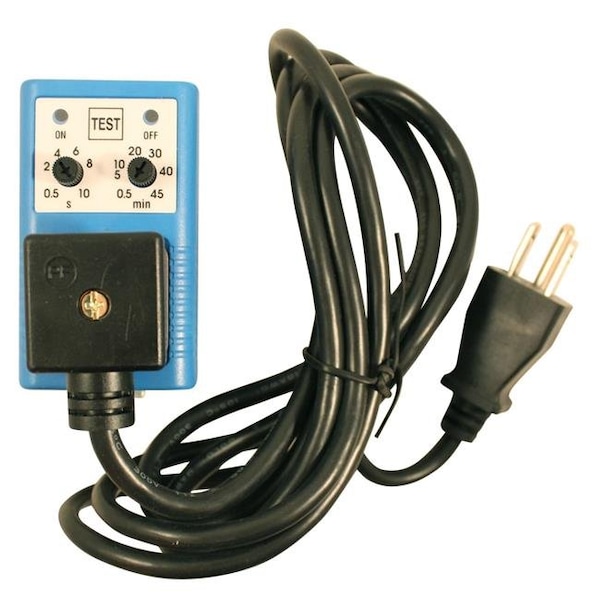

Milton 1139-1 0.25 in. FNPT Electronic Compressor Tank Drain

This compressor tank drain is electronically adjustable to drain compressor tank automatically in order for it to deliver dry air. The two 2 way direct acting 1/4" FNPT valves are made of forged brass and have a manual test switch. Mountable in any position, this tank drain has a 6' 1/2" power cord and offers voltage of 115 volts / 1 phase / 60 Hz. Offers a working pressure range of 0 to 230 PSI.

Milton products cover a broad range of application in various industries, such as automotive, fleet maintenance and construction. We have achieved the industry leader in high quality pneumatic accessories and fitting, proudly living up to our heritage of superior products and reliability.

• 0.25 in. FNPT Electronic Compressor Tank Drain
• 1/4" female national pipe thread
• Working pressure range of 0 to 230 pounds per square inch
• Temperature range of 40 degrees Fahrenheit to 140 degrees Fahrenheit
• Discharge interval adjustable from .5 to 45 minutes
• Discharge duration adjustable from .5 to 10 seconds

• NPT thread size: 1/4" Female NPT
• Pressure range: Pressure range 0 to 230 PSI
• Dimension: 1.75" H x 3" W x 3.5" L
• Weight: 1.173 Lbs
