This item is Discontinued.
This item is Discontinued.

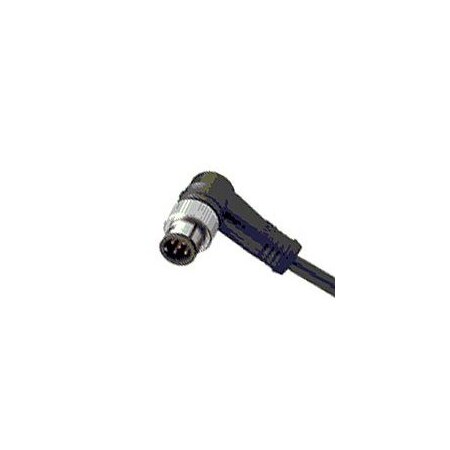

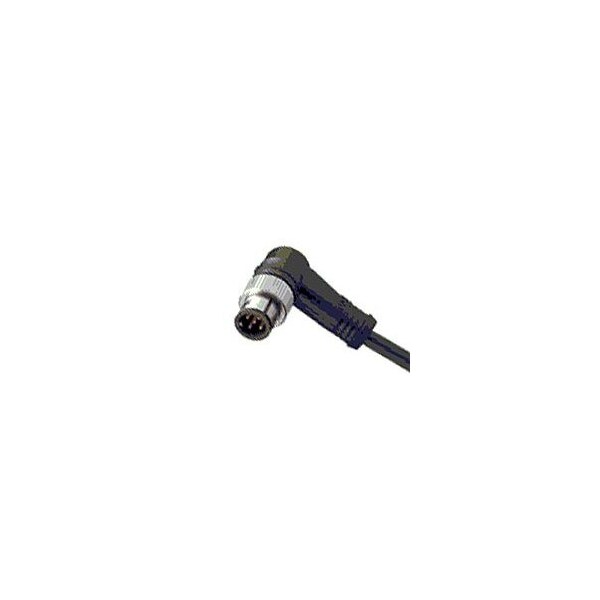

Mic 5P Pl 0.3M 90D 22/5 Tpu (Discontinued)
Mfr #
T05007B30M003
Zoro #
G205904216
Country of Origin Mexico
Category Sensor Cordsets & Receptacles
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- T05007B30M003
- Zoro #
- G205904216
- UPC #
- -
- Country of Origin
- Mexico
- IP Rating
- IP65, IP67, IP68
- Type
- Single Ended
- Application
- IO Control
- Keyway
- A-coded
- Material - Plating Mating
- Gold
- Color - Cable Jacket
- Black
- Orientation
- 90° to Pigtail
- LED Indicator
- No
- Material - Connector Body
- TPE
- Wire/Cable Type
- TPE
- Coupling Style
- Push to Lock
- Poles
- 5
- Material - Cable Jacket
- TPU
- Voltage - Maximum
- 250V DC
- Temperature Range - Operating
- -25°C to +80°C
- Material - Coupling Nut
- Nickel-plated Brass
- Gender
- Male-Pigtail
- Current - Maximum per Contact
- 4.0A
- Series
- 121193
- Connector End B
- Ultra-Lock (M12)
- Connector End A
- Ultra-Lock (M12)
- Material - Contact
- Copper Alloy
- Product Name
- MX-PTL
