  9. Data Cable, 1000 ft. L, Blue Jacket
Shop All Data & Ethernet Cables
Zoro Select

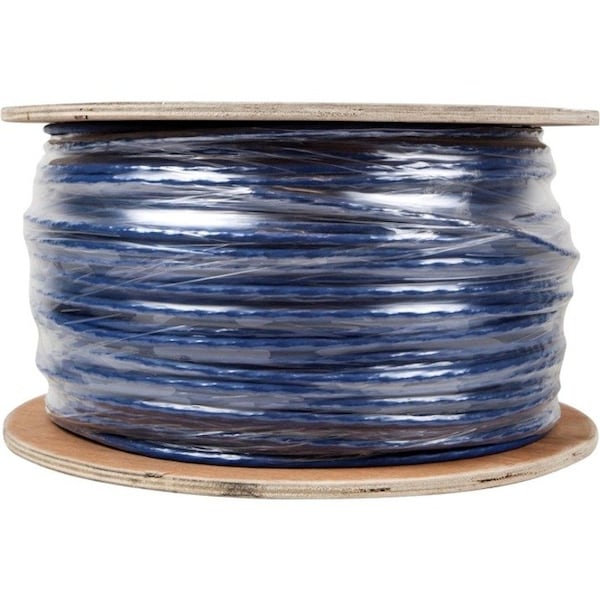

Data Cable, 1000 ft. L, Blue Jacket

original price: $385.50
13% off
new price: $331.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Riser
  • Wire Size 23 AWG
  • Category - Data Cable 6A
  • Shielded Unshielded
  • Number of Conductors 8
See all product information

Product Information

Dimensions

Wire Size 23 AWG
Length 1000 ft.
Conductor Size - Data Cable 23 AWG
Spool Length 1,000 ft
Outside Dia. 0.291 in
Bend Radius 1 3/16 in
Cable Length 1,000 ft
Outside Diameter 5/16 in

Details

Item - Data Cable Category Cable
Item Data Cable
Fire Rating - Data Cable Riser
Category - Data Cable 6A
Shielded Unshielded
Number of Conductors 8
Total Number of Conductors - Data Cable 8 (4 Pair)
Solid / Stranded Solid
Package Type - Data Cable Spool
Jacket Color Blue
Jacket Material PVC
NEC Article and Type 800 CMR
Pulling Force 25 lb
Standards ELT, TIA 568, UL Listed
Jacket Material - Wire and Cable PVC
Operating Temp. Range -20 Degrees to 75 Degrees C
Jacket Material (Wire and Cable) PVC
Category Type 6A
Frequency 500 MHz
Number of Conductor Pairs 4
Plenum Rated Yes
Green Environmental Attribute RoHS 2011/65/EU Compliant
Installation Temp. Range 0 Degrees to 60 Degrees C
Package Type Reel in a Box
Shielded / Unshielded Unshielded
Product Type Network Cable
Maximum Operating Temperature 167 Degrees F
Maximum Frequency 550 MHz
Fire Rating Riser
Performance Category 6A
Solid/Stranded Solid
Number of Pairs 4
Conductor Gauge 23 AWG
Minimum Operating Temperature -4 Degrees F

Description

Data Cable, Cable Length 1,000 ft, Conductor Gauge 23 AWG, Fire Rating Riser, Jacket Color Blue, Jacket Material PVC, Outside Diameter 5/16 in, Performance Category 6A, Shielded Unshielded, Number of Conductors 8, Number of Pairs 4, NEC Article and Type 800 CMR, Standards ELT, TIA 568, UL Listed, Package Type Reel in a Box, Solid/Stranded Solid, Bend Radius 1 3/16 in, Maximum Frequency 550 MHz, Maximum Operating Temperature 167 Degrees F, Minimum Operating Temperature -4 Degrees F
