This item is Discontinued.

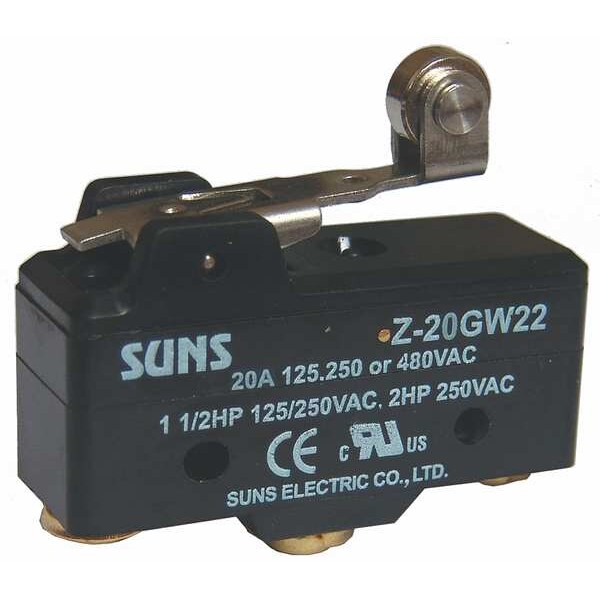

Zoro Select Industrial Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 20A @ 480V AC Contact Rating 5JEF3

This item is Discontinued.

Zoro Select

Industrial Snap Action Switch, Hinge Roller, Lever Actuator, SPDT, 20A @ 480V AC Contact Rating (Discontinued)

Mfr # 5JEF3
Zoro # G1277071
UPC # 190735527863
Country of Origin China
Category Snap Action Switches
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5JEF3
Zoro #
G1277071
UPC #
190735527863
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
1.03 in
Height - Snap Action Switch
1.81 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.69 in
Height
1.81"
Depth
0.69"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Length
1.94"
Mounting Dimension
1.00" Centers
Actuator Length
1.03"
Overall Width
1.94 in
Overall Depth
0.69 in
Overall Height
1.81 in
Lever Actuator Length
1.03 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
20 A @ 480 V
Contact Form- Switches
SPDT
Differential Travel
0.045 in
Type of Actuator
Hinge Roller Lever
Terminal Type
Screw
Series
Z
Max. Pretravel
0.25 in
Voltage Rating
125/250/480VAC
Housing Material
Phenolic Case and Cover
Watertight - Snap Action Switch
No
Electrical Connection - Snap Action Switch
Screw
Current Rating
20A
Operating Force
6.00 oz
Standards
CE, CSA, UL Listed
Contact Form
1NO/1NC
Over Travel
0.03 in
Release Force
1.51 oz
Operating Temp. Range
-13 Degrees to 185 Degrees F
AC Contact Rating
20 A @ 480 V
Shop By
Closeouts
Electrical Connection
Screw Terminal
Actuator Style
Roller Lever
Differential Travel - Maximum
0.045 in
Body Material
Phenolic
Operating Force - Maximum
6 ozf
Operating Force - Minimum
1.67 N
Switch Structure
SPDT

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 20 A @ 480 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.03 in, Height - Snap Action Switch 1.81 in, Width - Snap Action Switch 1.94 in, Depth - Snap Action Switch 0.69 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Z
