  6. Plate Caster, 700 lb. Load Rating

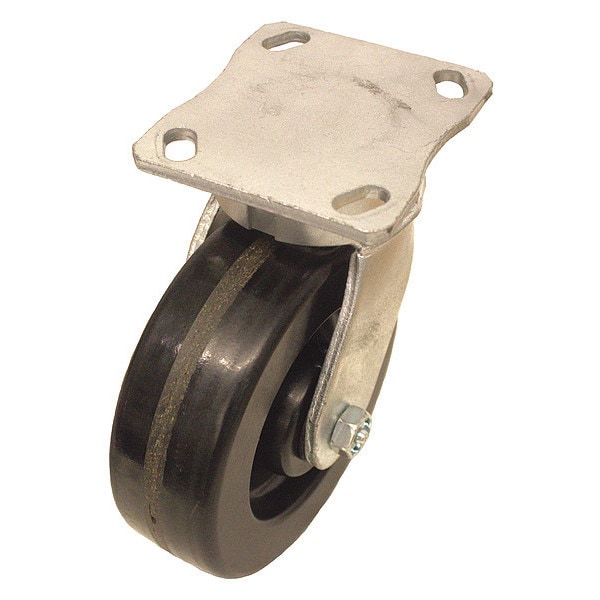

Zoro Select Plate Caster, 700 lb. Load Rating P25S-PH033R-14 - main

Plate Caster, 700 lb. Load Rating

  • Mfr # P25S-PH033R-14

  • Zoro # G1617644

product price:  $39.19
/ea

Key Features

Caster Temp. Range Available
Yes
Number of Wheels
1
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
System of Measurement
Inch
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P25S-PH033R-14
Zoro #
G1617644
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Swivel Radius
2 29/32 in
Wheel Width
2 in
Overall Height
5-1/4in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
5 1/16 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 1/2 in
Mounting Plate Thickness
0.236 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in

Details

Caster Temp. Range Available
Yes
Number of Wheels
1
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
System of Measurement
Inch
Non-Marking
Yes
Caster Brake Included
No
Item
Kingpinless Swivel Caster
Caster Brake Type
No Brake
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Replacement Wheel
Mfr. No. P-PH-033x020/050R-001
Extended Lead
No
Features
Reduced Push/Pull Forces
Load Rating
700 lb
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Black
Standards
DIN EN 12532
Frame Finish
Zinc Plated
Core Color
Black
Thread Guards
No
Caster Frame Material
Steel
Caster Plate Hole Pattern
B
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Medium Duty
Wheel Bearing Type
Roller
Wheel Core Material
Phenolic
Tread Shape
Standard
Includes Thread Guards
No
Number of Mounting Holes
4
Swivel Construction
Kingpinless
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Series
P25 Series
Tread
Standard
Caster Mounting Type
Plate
ESD Conductive
No
Load Capacity
700 lb
Accessories
Optional: P-DL25-14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Black
Load Capacity - Maximum
700 lb
Wheel Hardness Rating
Rockwell 102E
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Bearing Material
Steel
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
