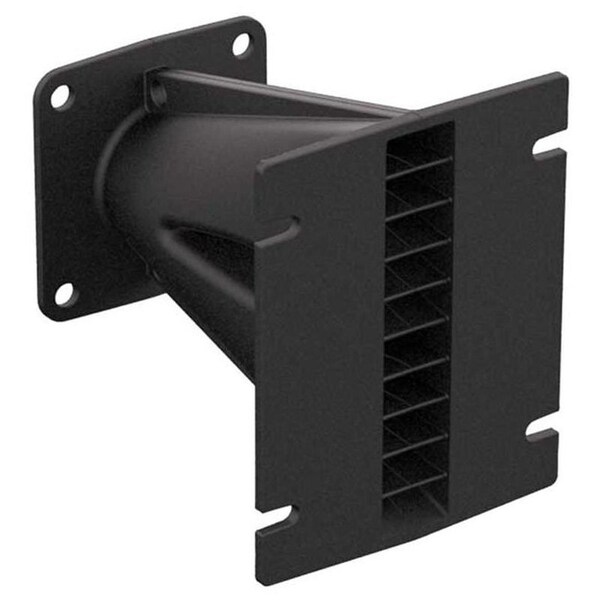

Line Array Waveguide for 1.0-in entry line-array source
Mfr # XG10
Zoro # G816311755
product price: $102.99
/ea
Free Shipping & Returns
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
XG10
Zoro #
G816311755
UPC #
-
Country of Origin
Italy
Description
10 Degrees vertical coverage angle Transmission line acoustical design minimizes internal reflections and acoustical losses Throat shape optimized for lowering air distortion Compact size for high arrayability Die-cast aluminum construction Throat Diameter: 25.4 mm 1,0 in Horizontal Coverage -6dB 100 Degrees nominal Vertical Coverage -6 dB 10 Degrees nominal Usable Frequency Range Above 1200 Hz Sensitivity 111 dB Frequency Range 1000 Hz - 18KHz Material 1 Die-cast aluminum Flange Height 101 mm 3.97 in Mouth Width 87 mm 3.42 in Depth 130 mm 5.11 in Flange Mounting 4 screws 0 M5 Gross weight 1,0 Kg 2.21 lb Net weight 0,4 kg 0.88 lb
