  11. 13 in Ratchet Crimper 22 to 10 AWG

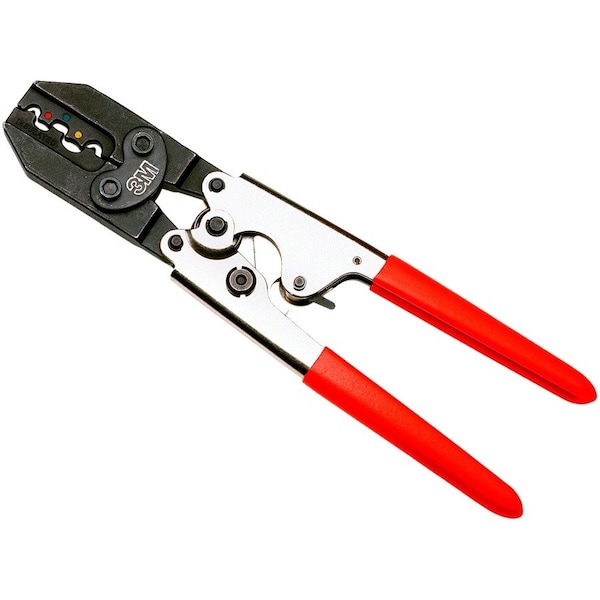

3M 13 in Ratchet Crimper 22 to 10 AWG TR-490 - main

13 in Ratchet Crimper 22 to 10 AWG

  • Mfr # TR-490

  • Zoro # G4330024

product price: $467.99
/ea
Free Shipping & Returns

Key Features

Capacity
22 to 10 AWG
Overall Length
13 in
Handle Type
Dipped
Insulated
Yes
Application
Crimps Barrel and Insulation Grip Independently on NO. 22-10 AWG Insulated and Non-Insulated Terminals and Connectors: Nylon or Vinyl Insulated, Butted or Brazed Seam.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TR-490
Zoro #
G4330024
UPC #
54007704812
Country of Origin
United States

Dimensions

Overall Length
13 in
Tool Length
13 in
Maximum Compatible Wire Size
10 AWG
Minimum Compatible Wire Size
22 AWG

Details

Item
Ratchet Crimper
Capacity
22 to 10 AWG
Handle Type
Dipped
Insulated
Yes
Application
Crimps Barrel and Insulation Grip Independently on NO. 22-10 AWG Insulated and Non-Insulated Terminals and Connectors: Nylon or Vinyl Insulated, Butted or Brazed Seam.
Features
A Positive Closure of the Handles Ensures a Proper Crimp; Corrosion Resistant; Cushion-Gripped, and Features a Pawl Release Lever for the Removal of Misplaced Terminals
Insulated / Uninsulated
Insulated and Non-Insulated Terminals
Primary Crimping Application
Electrical Wire and Cable
Max. Crimping Force
Not Rated
Strips
No
Replacement Die Code
None
Cuts
No
Adjustable
Automatic
For Use With
3M Scotchlok Insulated and Non-Insulated Terminals and Connectors: Nylon Or Vinyl Insulated, Butted Or Brazed Seam
Standards
CSA Certified, UL Listed
Tool Weight
0.8 lb
Minimum Crimping Capacity
22 AWG
Adjustability
Automatic
Crimper Style
Ratchet Tool
Crimping Capacity
10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG
Maximum Crimping Capacity
10 AWG
Includes Wire Cutter
No
Replacement Die Part Number
None
Grip Style
Standard Cushion
Compatible Terminal Type
Insulated
Compatible Connector Type
Insulated Terminals and Connectors
Body Material
Steel
Grip Material
Plastic
Includes Wire Stripper
No
Connector Color Code
Blue, Red, Yellow
Maximum Crimping Force
Not Rated
Includes Crimping Die
No
Ratcheting Mechanism
Yes

Description

Ratchet Crimper, Crimper Style Ratchet Tool, Crimping Capacity 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, Compatible Connector Type Insulated Terminals and Connectors, Compatible Terminal Type Insulated, Minimum Compatible Wire Size 22 AWG, Maximum Compatible Wire Size 10 AWG, Maximum Crimping Force Not Rated, Tool Length 13 in, Includes Wire Cutter No, Includes Wire Stripper No, Insulated Yes, Adjustability Automatic, Body Material Steel, Connector Color Code Blue, Red, Yellow
