Shop 3M

Butt Splice Wire Connector, 14 AWG Max, Blue, Vinyl Insulation, 600 V, 1000 PK

  • Mfr # MVU14PCK

  • Zoro # G5719192

product price:  $532.99
/pk 1000, $0.53/ea
Free Shipping & Returns

Key Features

Type
Butt Splice
Color
Blue
Minimum Wire Size
16 AWG
Insulation Material
Vinyl
Maximum Voltage
600 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MVU14PCK
Zoro #
G5719192
UPC #
00054007018247
Country of Origin
United States

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Barrel Inside Dia.
0.09 in

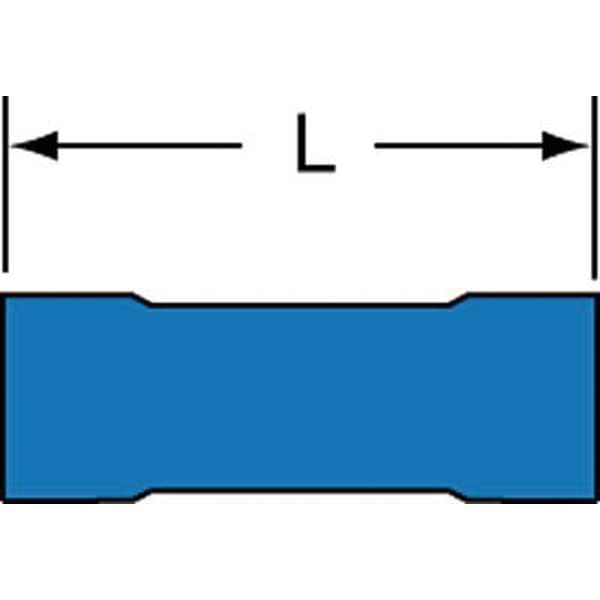

Overall Length
0.67 in
Barrel Length
0.30 in
Maximum Insulation Outer Diameter
0.17 in
Barrel Inside Diameter
0.09 in
For Minimum Wire Size - Stranded
16 AWG
For Minimum Wire Size - Solid
14 AWG
For Maximum Wire Insulation Diameter
0.17 in
Strip Length
3/8 in

Details

Item
Wire Connector
Type
Butt Splice
Color
Blue
Insulation Material
Vinyl
Maximum Voltage
600 V
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
221 Degrees F
RoHS Compliant
Yes
Standards
CSA Certified, RoHS 2011/65/EU, UL Listed
Material
Electrolytic Copper
Barrel Style
Butted Seam
Cu Stranded Wire Combinations
1 #18 to 1 #18, 16, 14,1 #16 to 1 #16,1 #22 to 1 #22, 20, 18, 16, 14,1 #20 to 1 #20, 18, 16, 14
Solution for
Wireless Network Infrastructure Accessories
Seam Style
Butted
Finish
Tin Plated
Termination Style
Crimp
Body Finish
Tin Plated
Contact Finish
Tin
For Wire Type
Stranded
Contact Material
Copper
Special Features
3M Scotchlok Parallel Connector is Color-Coded for Quick and Easy Identification of the Wire Size Required
Insulation Color
Blue
Body Material
Copper
Compatible Installation Tool Model Number
TH-440, TH-450, TR-490

Description

Butt Splice Connector, Connection Type Crimp, Insulation Material Vinyl, Insulation Color Blue, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Standards RoHS 2011/65/EU, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, Overall Length 0.67 in, Seam Style Butted, Barrel Inside Diameter 0.09 in, Body Finish Tin Plated, Body Material Copper, Compatible Installation Tool Model Number TH-440, TH-450, TR-490
