Shop 3M

Compression Lug

  • Mfr # 42389

  • Zoro # G922254489

product price:
$
115.99
/ea
Free Shipping & Returns

Key Features

Dielectric Strength
365 V
I.D. Before Shrinking
2.85 in
Material
EPDM Rubber
Temp. Range
-40 Degrees F to 194 Degrees F
Standards
RoHS 2011/65/EU
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
42389
Zoro #
G922254489
UPC #
00054007423898
Country of Origin
United States

Dimensions

Use With Wire Size
900 to 1,000 kcmil
Length
12 in
Wall Thickness After Shrinking
4.6 mm

Details

Dielectric Strength
365 V
I.D. Before Shrinking
2.85 in
Material
EPDM Rubber
Temp. Range
-40 Degrees F to 194 Degrees F
Standards
RoHS 2011/65/EU
I.D. After Shrinking
0.84 in
Shrink Tubing Properties
Water-Resistant
Package Style
Individual Pieces
Shrink Ratio
2:1
Color
Black
Features
Covers a Wide Range of Cable Cross Sections, Designed for Primary Insulation of Solid Dielectric Insulated Wires and Cable Splicing Rated to 1000 V, Environmental Sealing for Communication and Other Non-Electrical Applications, Made of EPDM Rubber Which Contains no Chlorides or Sulfur, Sealing of Terminal Lug Barrels Conduit Couplings and Conduit-to-Cable Breakouts, Simple Installation which Requires no Tools
Max. Temp. Rating
194 Degrees F
Min. Temp. Rating
-40 Degrees F

Description

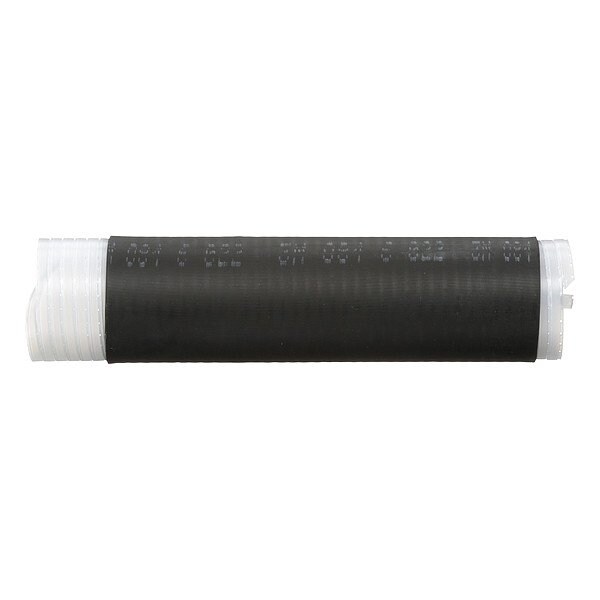

Shrink Tubing, Material EPDM Rubber, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 900 to 1,000 kcmil, I.D. Before Shrinking 2.85 in, I.D. After Shrinking 0.84 in, Wall Thickness After Shrinking 4.6 mm, Length 12 in, Shrink Tubing Properties Water-Resistant, Color Black, Temp. Range -40 Degrees F to 194 Degrees F, Package Style Individual Pieces, Dielectric Strength 365 V, Max. Temp. Rating 194 Degrees F, Min. Temp. Rating -40 Degrees F

Restrictions

This item has been restricted from sale in the following states: CA
