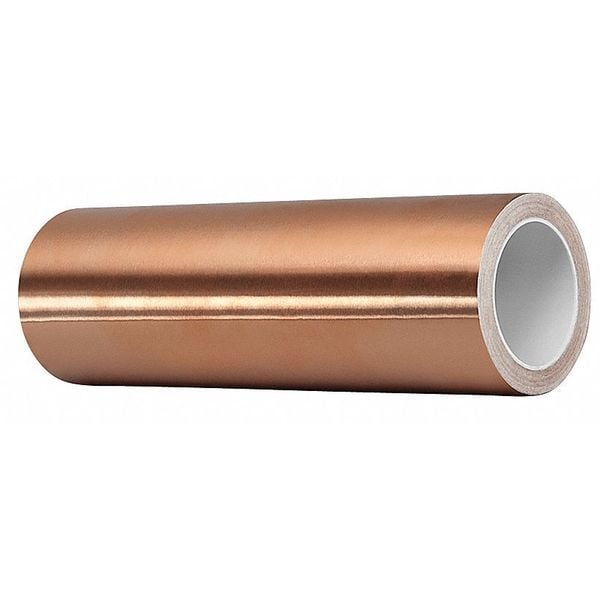

Conductive Elec Tape, 36" Lx23" W, 1125

  • Mfr # 1125

  • Zoro # G5565515


product price: $53.15
/ea

Key Features

Tape Color
Copper
Series
1125
Tape Thickness
3.5 mil
Performance Temp.
Up to 300 Degrees C
Tape Tensile Strength
25 lb/in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1125
Zoro #
G5565515
UPC #
888519073001
Country of Origin
Taiwan, Province of China

Dimensions

Tape Thickness
3.5 mil
Width
23"
Length
36"
Duct Tape Width
4"
Duct Tape Length
36"
Imperial Tape Length
36 in
Metric Tape Width
584.2 mm
Metric Tape Length
914.4 mm
Imperial Tape Width
23 in

Details

Tape Color
Copper
Series
1125
Performance Temp.
Up to 300 Degrees C
Item
Conductive Electrical Tape
Tape Tensile Strength
25 lb/in
Color
Copper
Standards
RoHS 2011/65/EU, UL Listed
Tape Backing Material
Copper
Adhesion Strength
40 oz./in.
Material
Copper
Shape
Continuous Roll
Duct Tape Adhesive
Acrylic
Number of Adhesive Sides
1
Tape Backing Construction
Foil
Tape Adhesive Material
Acrylic
Adhesion to Steel
40 oz/in
Shielding Effectiveness
65 dB
Product Form
Continuous Roll
Maximum Tape Performance Temperature
265 Degrees F
Tape Adhesive Format
Single-Sided
Tape Type
Foil
Liner Included
Yes
Tape Sub-Type
General Purpose Foil
Voltage Rating
600 V
Tape Resistance Properties
Thermal-Resistant
Elongation
5 %
Tape Properties
EMI-Shielding
Tape Brand
3M(TM)
Breaking Strength
25 lb/in
Minimum Tape Performance Temperature
-40 Degrees F
Specifications Met
EU, RoHS, UL Listed

Description

Conductive Electrical Tape, Tape Backing Material Copper Foil, 23 in, 1 yd, Tape Color Copper, Tape Sub-Type General Purpose Foil, Tape Adhesive Material Acrylic, 3.5 mil, 3M(TM), 1125, Minimum Tape Performance Temperature -40 Degrees F, Maximum Tape Performance Temperature 265 Degrees F, Voltage Rating 600 V, Shielding Effectiveness 65 dB, Liner Included Liner Included, Product Form Continuous Roll, Tape Adhesive Format Single-Sided, Imperial Tape Shape Diameter Not Applicable
