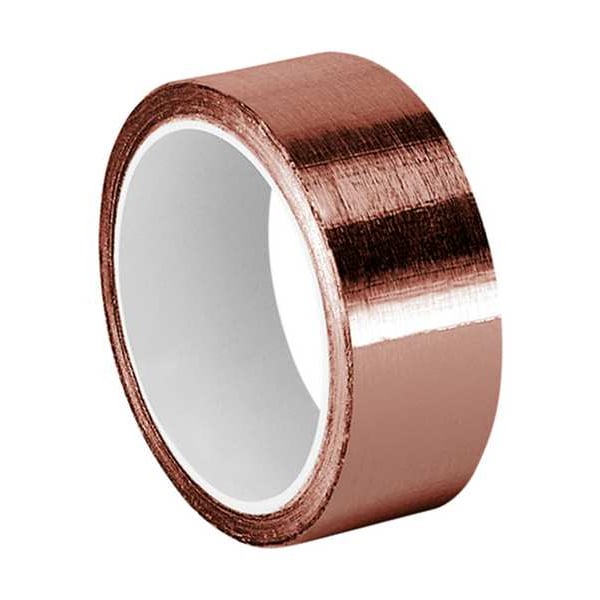

Conductive Electrical Tape, Copper, 6 yd L

  • Mfr # 1125

  • Zoro # G5300723


product price: $19.75
/ea

Key Features

Tape Color
Copper
Series
1125
Tape Thickness
3.5 mil
Performance Temp.
Up to 300 Degrees C
Tape Tensile Strength
25 lb/in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1125
Zoro #
G5300723
UPC #
888519070567
Country of Origin
Taiwan, Province of China

Dimensions

Tape Thickness
3.5 mil
Width
1"
Length
6 yd.
Duct Tape Width
4"
Duct Tape Length
6 yd.
Metric Tape Width
25.4 mm
Imperial Tape Length
18 ft
Imperial Tape Width
1 in
Metric Tape Length
5.5 m

Details

Tape Color
Copper
Series
1125
Performance Temp.
Up to 300 Degrees C
Item
Conductive Electrical Tape
Tape Tensile Strength
25 lb/in
Color
Copper
Adhesion Strength
40 oz./in.
Material
Copper
Shape
Continuous Roll
Standards
RoHS 2011/65/EU, UL Listed
Tape Backing Material
Copper
Duct Tape Adhesive
Acrylic
Number of Adhesive Sides
1
Liner Included
Yes
Specifications Met
EU, RoHS, UL Listed
Shielding Effectiveness
65 dB
Tape Brand
3M(TM)
Tape Type
Foil
Adhesion to Steel
40 oz/in
Tape Properties
EMI-Shielding
Tape Backing Construction
Foil
Breaking Strength
25 lb/in
Tape Sub-Type
General Purpose Foil
Maximum Tape Performance Temperature
265 Degrees F
Minimum Tape Performance Temperature
-40 Degrees F
Tape Adhesive Format
Single-Sided
Product Form
Continuous Roll
Voltage Rating
600 V
Elongation
5 %
Tape Resistance Properties
Thermal-Resistant
Tape Adhesive Material
Acrylic

Description

Conductive Electrical Tape, Tape Backing Material Copper Foil, 1 in, 6 yd, Tape Color Copper, Tape Sub-Type General Purpose Foil, Tape Adhesive Material Acrylic, 3.5 mil, 3M(TM), 1125, Minimum Tape Performance Temperature -40 Degrees F, Maximum Tape Performance Temperature 265 Degrees F, Voltage Rating 600 V, Shielding Effectiveness 65 dB, Liner Included Liner Included, Product Form Continuous Roll, Tape Adhesive Format Single-Sided, Imperial Tape Shape Diameter Not Applicable
