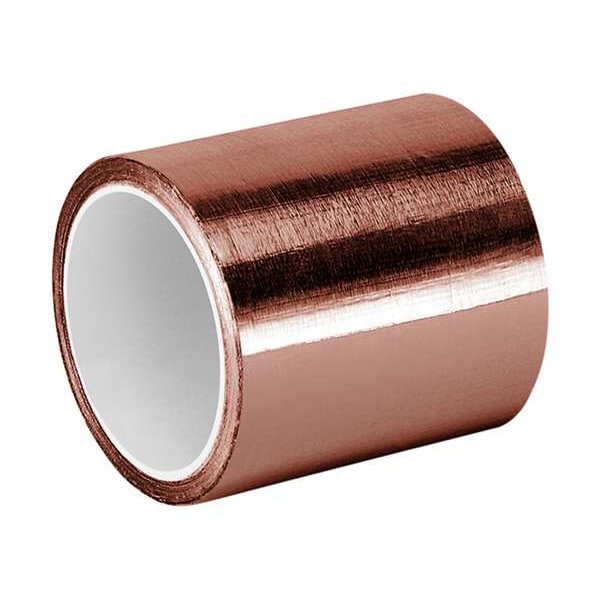

ConductiveElectricalTape, Copper, 6ydL

  • Mfr # 1181

  • Zoro # G4253846


product price: $117.99
/ea
Free Shipping & Returns

Key Features

Tape Color
Copper
Series
1181
Tape Thickness
2.6 mil
Performance Temp.
-40 Degrees to 130 Degrees C
Tape Tensile Strength
25 lb/in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1181
Zoro #
G4253846
UPC #
888519081471
Country of Origin
New Zealand

Dimensions

Tape Thickness
2.6 mil
Width
3"
Length
6 yd.
Duct Tape Width
3"
Duct Tape Length
6 yd.
Imperial Tape Width
3 in
Metric Tape Length
5.5 m
Imperial Tape Length
18 ft
Metric Tape Width
76.2 mm

Details

Tape Color
Copper
Series
1181
Performance Temp.
-40 Degrees to 130 Degrees C
Item
Conductive Electrical Tape
Tape Tensile Strength
25 lb/in
Color
Copper
Adhesion Strength
35 oz./in.
Standards
RoHS 2011/65/EU, UL Listed
Shape
Continuous Roll
Tape Backing Material
Copper
Material
Copper Foil
Duct Tape Adhesive
Acrylic
Duct Tape Grade
P80
Number of Adhesive Sides
1
Elongation
5 %
Tape Properties
Electrically Conductive, EMI-Shielding
Tape Adhesive Format
Single-Sided
Tape Backing Construction
Foil
Adhesive Properties
Conductive
Voltage Rating
600 V
Tape Adhesive Material
Acrylic
Maximum Tape Performance Temperature
266 Degrees F
Tape Sub-Type
General Purpose Foil
Tape Resistance Properties
Heat-Resistant, Oil-Resistant, Solvent-Resistant
Minimum Tape Performance Temperature
-40 Degrees F
Tape Type
Foil
Adhesion to Steel
35 oz/in
Product Form
Continuous Roll
Liner Included
Yes
Specifications Met
EU, RoHS, UL Listed
Tape Brand
3M(TM)
Shielding Effectiveness
66 dB
Breaking Strength
25 lb/in

Description

Conductive Electrical Tape, Tape Backing Material Copper Foil, 3 in, 6 yd, Tape Color Copper, Tape Sub-Type General Purpose Foil, Tape Adhesive Material Acrylic, 2.6 mil, 3M(TM), 1181, Minimum Tape Performance Temperature -40 Degrees F, Maximum Tape Performance Temperature 266 Degrees F, Voltage Rating 600 V, Shielding Effectiveness 66 dB, Liner Included Liner Included, Product Form Continuous Roll, Tape Adhesive Format Single-Sided, Imperial Tape Shape Diameter Not Applicable
