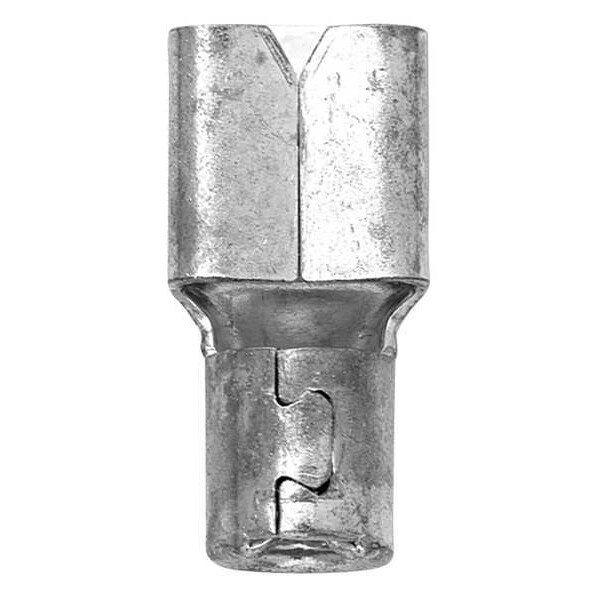

Female Disconnect, Bare, 16-14AWG, PK100

  • Mfr # MU14-250DFHTX

  • Zoro # G6166151

product price:  $88.79
/pk 100, $0.89/ea
Sold in multiples of 5 for $443.95

Key Features

Insulation
None
Insulation Color
Bare
Wire Range
16 to 14 AWG
Insulation Type
Non-Insulated
Connection Type
Crimp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MU14-250DFHTX
Zoro #
G6166151
UPC #
00051128589786
Country of Origin
United States

Dimensions

Overall Length
0.64 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.095 in
Overall Width
0.25 in
Minimum Conductor Size
16 AWG
Maximum Conductor Size
14 AWG
Mates with Female Width
0.250 in
Barrel Inside Diameter
0.095 in
Mates with Male Tab Width (W')
0.250 in
Barrel Length
0.23 in
Pad Width
0.25 in
Connection Width
0.25 in
Tab Width
0.25 in
Maximum Wire Size
14 AWG
Tab Thickness
0.032 in
Minimum Wire Size
16 AWG
Wire Rope Length
0.64 in

Details

Item
Wire Disconnect
Insulation
None
Insulation Color
Bare
Wire Range
16 to 14 AWG
Insulation Type
Non-Insulated
Connection Type
Crimp
Seam
Butted
Max. Voltage
1,000 V
Max. Temp.
900 Degrees F
Standards
CSA Certified, UL Listed
Connection Material
Nickel-Plated Steel
Terminal Type
Socket
Solution for
Wireless Network Infrastructure Accessories
Terminal Style
High Temp
Fastener Orientation
Female
Product Color
Metal
Insulation Material
None
Disconnect Type
Female
Contact Material
Steel
Seam Style
Butted
Termination Style
Crimp
Maximum Voltage
1,000 V
Insulation Coverage
None
Contact Finish
Nickel
Special Features
Corrosion-Resistant
Disconnect Style
Quick Disconnect

Description

Wire Disconnect, Contact Finish Nickel, Contact Material Steel, Disconnect Style Quick Disconnect, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 900 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 1,000 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Applicable, Seam Style Butted, Standards CSA Certified, UL Listed
