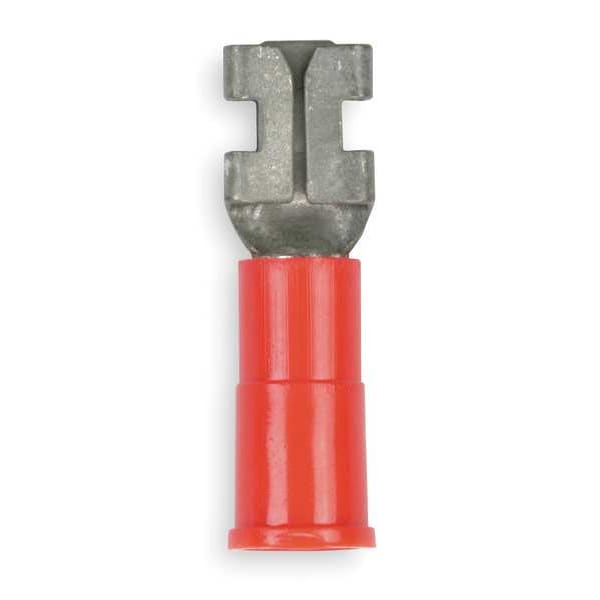

Female Disconnect, Red, 22-18AWG, PK100
Mfr # MVU18-187DFX
Zoro # G2580523
product price: $107.99
/pk 100, $1.08/ea
Free Shipping & Returns
Key Features
Insulation
Partial
Insulation Color
Red
Wire Range
22 to 18 AWG
Connection Type
Crimp
Insulation Type
Vinyl
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MVU18-187DFX
Zoro #
G2580523
UPC #
10051128590130
Country of Origin
United States
Dimensions
Overall Length
0.78 in
Tab Size
0.020 in x 0.187 in
Barrel Inside Dia.
0.085 in
Mates with Male Tab Width (W')
0.187 in
Mates with Female Width
0.187 in
Tab Width
0.187 in
Pad Width
0.187 in
Minimum Conductor Size
22 AWG
Connection Width
0.187 in
Maximum Insulation Outer Diameter
0.145 in
Maximum Conductor Size
18 AWG
Barrel Length
0.25 in
Barrel Inside Diameter
0.085 in
Minimum Wire Size
22 AWG
Maximum Wire Size
18 AWG
Tab Thickness
0.02 in
Description
Female Disconnect, Contact Material Copper, Insulation Color Red, Insulation Coverage Partial Coverage, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.02 in, Tab Width 0.187 in, Terminal Type Female Disconnect, Termination Style Crimp, Seam Style Butted, Standards CSA Certified, RoHS Compliant, UL Listed, Barrel Inside Diameter 0.085 in, Overall Length 0.78 in, Package Quantity 100
