Female Disconnect, Red, 22-18AWG, PK250
Mfr # MNHU18-250DFIK
Zoro # G5601933
product price: $229.99
/pk 250, $0.92/ea
Free Shipping & Returns
Key Features
Insulation
Full
Insulation Color
Red
Connection Type
Crimp
Insulation Type
Nylon
Wire Range
22 to 18 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNHU18-250DFIK
Zoro #
G5601933
UPC #
00054007063551
Country of Origin
United States

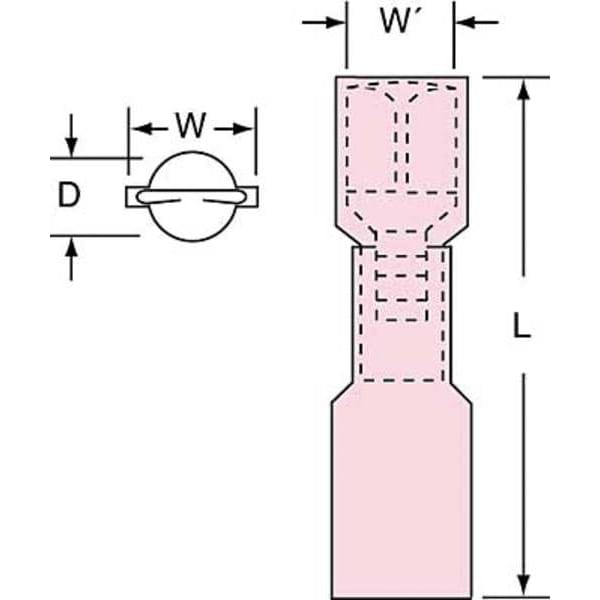

Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
1.2 in
Barrel Inside Dia.
0.08 in
Male Tab Width (W')
0.25 in
Minimum Conductor Size
22 AWG
Overall Width
0.37 in
Barrel Inside Diameter
0.08 in
Overall Diameter
0.23 in
Tab Width
0.25 in
Maximum Conductor Size
18 AWG
Barrel Length
0.25 in
Connection Width
0.25 in
Pad Width
0.25 in
Diameter (D)
0.23 in
Tab Thickness
0.032 in
Minimum Wire Size
22 AWG
Maximum Wire Size
18 AWG
Description
Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Quick Disconnect, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon with Heat Shrink, Maximum Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 1,000 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.08 in
