Female Disconnect, Yellow, 12-10AWG, PK500
Mfr # MNGI10-250DFK
Zoro # G5578946
product price: $399.99
/pk 500, $0.80/ea
Free Shipping & Returns
Key Features
Insulation
Partial
Insulation Color
Yellow
Connection Type
Crimp
Insulation Type
Nylon
Wire Range
12 to 10 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNGI10-250DFK
Zoro #
G5578946
UPC #
00054007695684
Country of Origin
United States
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
0.94 in
Barrel Inside Dia.
0.165 in
Tab Thickness
0.032 in
Minimum Wire Size
12 AWG
Barrel Size
Standard
Maximum Wire Size
10 AWG
Barrel Outside Diameter
0.25 in
Tab Width
0.25 in
Barrel Inside Diameter
0.128 in

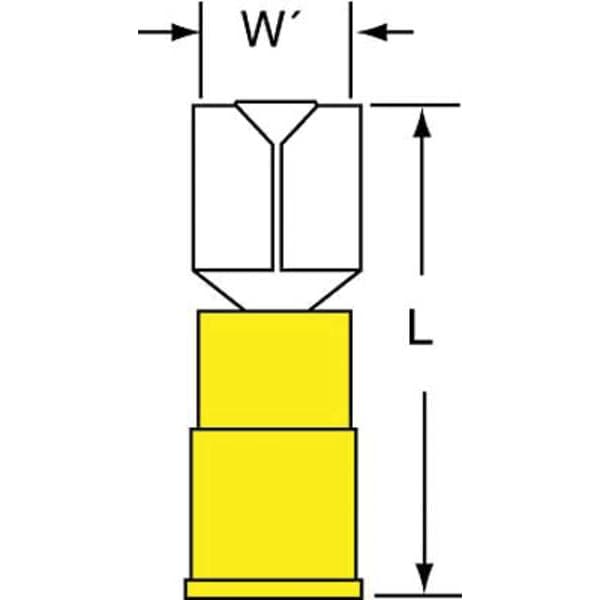

Mates with Male Tab Width (W')
0.25 in
Mates with Female Width
0.25 in
Barrel Length
0.25 in
Description
Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Quick Disconnect, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.128 in
