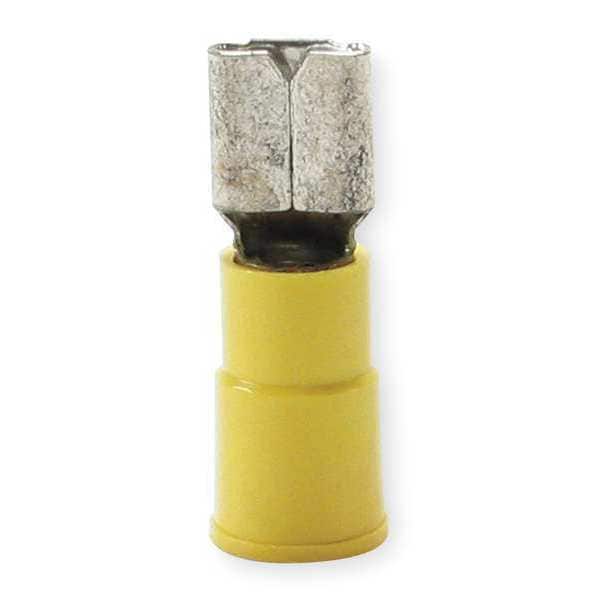

Female Disconnect, Yellow, 12to10AWG, PK50, Insulation: Partial
Mfr # MVI10-250DFX
Zoro # G3462322
product price:Â
$
77.99
/pk of 50, $1.56/ea
Key Features
Insulation
Partial
Material
ETP Copper
Insulation Color
Yellow
Wire Range
12 to 10 AWG
Insulation Type
Vinyl
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MVI10-250DFX
- Zoro #
- G3462322
- UPC #
- 00051128589366
- Country of Origin
- United States
Dimensions
- Tab Size
- 0.032 in x 0.250 in
- Overall Length
- 0.95 in
- Barrel Inside Dia.
- 0.128 in
- Maximum Insulation Outer Diameter
- 0.25 in
- Maximum Conductor Size
- 10 AWG
- Overall Diameter
- 0.23 in
- Barrel Inside Diameter
- 0.128 in
- Barrel Length
- 0.25 in
- Maximum Insulation Outside Diameter
- 0.145 in
- Pad Width
- 0.25 in
- Minimum Conductor Size
- 12 AWG
- Mates with Female Width
- 0.250 in
- Diameter (D)
- 0.23 in
- Mates with Male Tab Width (W')
- 0.25 in
- Connection Width
- 0.25 in
- Overall Width
- 0.37 in
- Tab Thickness
- 0.032 in
- Minimum Wire Size
- 12 AWG
- Maximum Wire Size
- 10 AWG
- Tab Width
- 0.25 in
- Wire Rope Length
- 0.95 in
- Length
- 0.95 in
Description
Female Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Tab, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Female Disconnect, Termination Style Crimp, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Seam Style Butted
