Fork Terminal, #10 Stud Size, 10 AWG, 600 V, Vinyl Insulated, Yellow, Crimp Termination Only

  • Mfr # MV10-10FBK

  • Zoro # G5604347

product price:
$
262.99
/pk of 500, $0.53/ea
Free Shipping & Returns

Key Features

Terminal Shape
Block Fork
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MV10-10FBK
Zoro #
G5604347
UPC #
00054007020165
Country of Origin
United States
Item
Fork Terminal
Terminal Shape
Block Fork
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed
Terminal Type
Block
Terminal Connection
Crimp
Connection Material
Copper
Seam
Brazed
Max. Temp.
221 Degrees F
Wire Range
12 to 10 AWG
Connection Type
Crimp
Solution for
Wireless Network Infrastructure Accessories

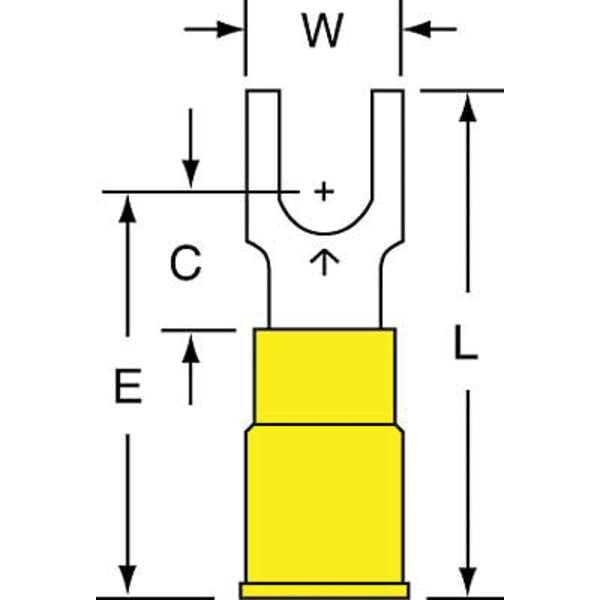

Clearance (C)
0.25 in
Seam Style
Brazed
Insulation Coverage
Partial Coverage
Insulation Material
Vinyl
Contact Finish
Tin
Series
MV10
Barrel Style
Brazed
Minimum Operating Temperature
-40 Degrees F
Special Features
3M(TM) Scotchlok(TM) Color-Coded Block Fork is a Lug Connection Terminal that Ensures an Ideal Fit while Offering Reliable and Safe Performance. The Terminal has a Vinyl-Insulated, Brazed-Seam Barrel and withstands Temperatures of -40 to 221 Degrees F (-40 to 105 Degrees C). Electrolytic Copper Construction Offers Good Conductivity and a Tin-Plated Finish Resists Corrosion

Description

Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Yellow, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size #10, Termination Style Crimp, Seam Style Brazed, Standards CSA, RoHS 2011/65/EU, UL, Barrel Length 0.25 in, Barrel Style Brazed, Connection Material Copper, Connection Type Crimp, Minimum Operating Temperature -40 Degrees F, Minimum Wire Size 12 AWG, Overall Length 1.03 in
