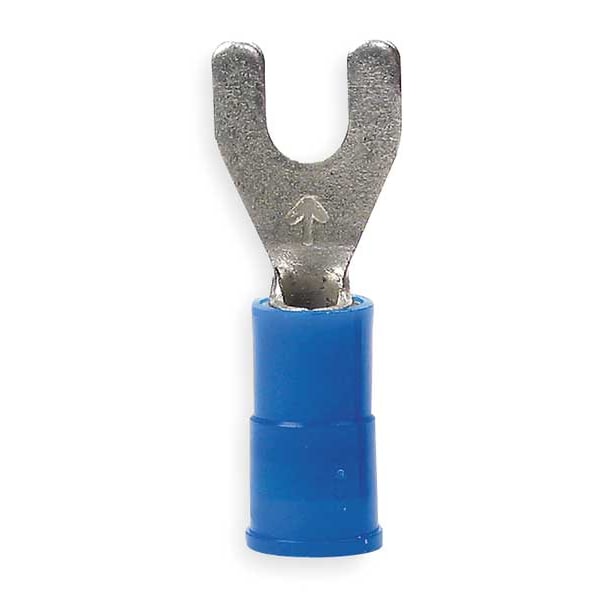

Fork Terminal, #10 Stud Size, 14 AWG, 600 V, Nylon Insulated, Blue, Crimp Termination Only, 100 PK
- Mfr # MNG14-10FLX
- Zoro # G2458075
product price:Â
$
138.99
/pk 100, $1.39/ea
Free Shipping & Returns
Key Features
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Minimum Wire Size
16 AWG
Insulation Type
Nylon
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MNG14-10FLX
- Zoro #
- G2458075
- UPC #
- 00051128587973
- Country of Origin
- United States
- Item
- Fork Terminal
- Terminal Shape
- Locking Fork
- Termination Style
- Crimp Termination Only
- Insulation Color
- Blue
- Insulation Type
- Nylon
- Contact Material
- Copper
- Maximum Voltage
- 600 V
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 221 Degrees F
- Standards
- CSA Certified, UL Listed
- Wire Range
- 16 to 14 AWG
- Max. Temp.
- 221 Degrees F
- Terminal Connection
- Crimp
- Seam
- Brazed
- Connection Type
- Crimp
- Connection Material
- Copper
- Insulation Material
- Nylon
- Contact Finish
- Tin
- RoHS Compliant
- Yes
- Special Features
- Funnel-Designed, Seamless Brass Sleeve Offers Easy Insertion of Wires
- Seam Style
- Butted
- Clearance (C)
- 0.25 in
- Insulation Coverage
- Partial Coverage
Description
Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #10, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Length 0.46 in, Connection Material Copper, Connection Type Crimp, Minimum Operating Temperature -40 Degrees F, Minimum Wire Size 16 AWG, Overall Length 0.89 in
