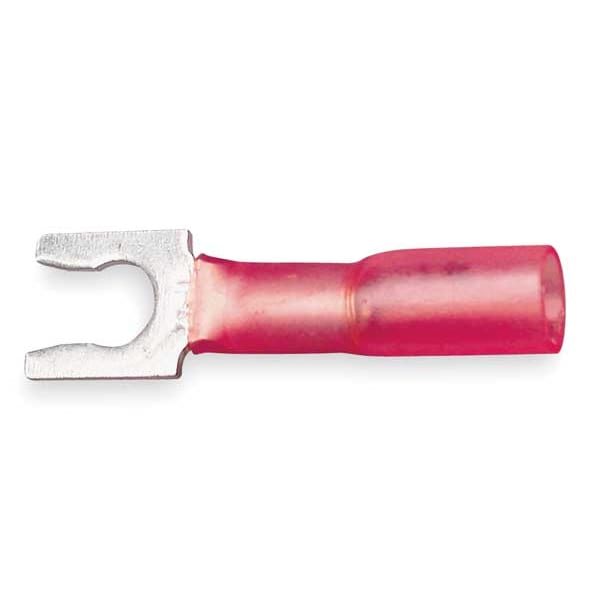

Fork Terminal, #10 Stud Size, 18 AWG, 600 V, Heat Shrink Insulated, Red, Crimp Termination Only
Mfr # MH18-10FLX
Zoro # G2028074
product price: $35.99
/pk 25, $1.44/eaKey Features
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Minimum Wire Size
22 AWG
Insulation Type
Heat Shrink
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MH18-10FLX
Zoro #
G2028074
UPC #
10051128589158
Country of Origin
United States
Dimensions
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Stud Size
#10
Overall Length
0.9 in
Tongue Width - Wire Connector
0.32 in
Barrel Inside Dia.
0.070 in
Tongue Width
0.32 in
Details
Item
Fork Terminal
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Insulation Type
Heat Shrink
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed
Connection Type
Crimp
Max. Temp.
221 Degrees F
Wire Range
22 to 18 AWG
Seam
Brazed
Connection Material
Copper
Terminal Connection
Crimp
Clearance (C)
0.15 in
Seam Style
Brazed
Description
Fork Terminal, Insulation Color Red, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 18 AWG, Stud Size #10, Seam Style Brazed, Standards CSA Certified, UL Listed, Connection Material Copper, Connection Type Crimp, Insulation Type Heat Shrink, Minimum Wire Size 22 AWG, Overall Length 0.9 in, Package Quantity 25
