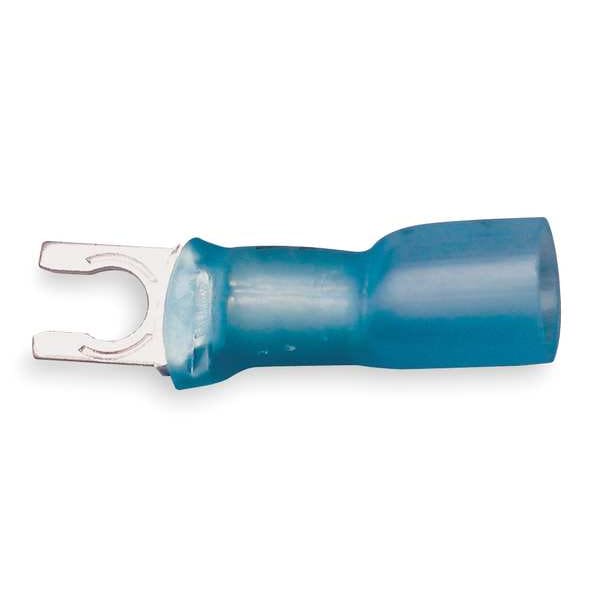

Fork Terminal, #6 Stud Size, 14 AWG, 600 V, Heat Shrink Insulated, Blue, Crimp Termination Only
- Mfr # MH14-6FLX
- Zoro # G3296395
product price:Â
$
42.29
/pk of 25, $1.69/ea
Key Features
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Minimum Wire Size
16 AWG
Insulation Type
Heat Shrink
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MH14-6FLX
- Zoro #
- G3296395
- UPC #
- 10051128588991
- Country of Origin
- United States
- Item
- Fork Terminal
- Terminal Shape
- Locking Fork
- Termination Style
- Crimp Termination Only
- Insulation Color
- Blue
- Insulation Type
- Heat Shrink
- Contact Material
- Copper
- Maximum Voltage
- 1,000 V
- Maximum Operating Temperature
- 221 Degrees F
- Standards
- CSA Certified, UL Listed
- Max. Temp.
- 221 Degrees F
- Connection Type
- Crimp
- Seam
- Brazed
- Terminal Connection
- Crimp
- Wire Range
- 16 to 14 AWG
- Connection Material
- Copper
- Clearance (C)
- 0.12 in
- Seam Style
- Brazed
- Insulation Material
- Heat Shrink
- Barrel Style
- Strain Relief
- Special Features
- Good Conductivity, Resists Corrosion
- Compatible Manufacturer Model Number
- TH-440, TH-450
- Series
- TH
- Compatible with Product Type
- Crimp Tool
Dimensions
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 16 AWG
- Stud Size
- #6
- Overall Length
- 1 in
- Tongue Width - Wire Connector
- 0.25 in
- Barrel Inside Dia.
- 0.090 in
- Tongue Width
- 0.25 in
- Barrel Length
- 0.25 in
- Strip Length
- 3/8 in
- Wire Rope Length
- 1 in
- Length
- 1 in
Description
Fork Terminal, Insulation Color Blue, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #6, Seam Style Brazed, Standards CSA Certified, UL Listed, Connection Material Copper, Connection Type Crimp, Insulation Type Heat Shrink, Minimum Wire Size 16 AWG, Overall Length 0.9 in, Package Quantity 25
