Shop 3M

Fork Terminal, #8 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only, 1000 PK

  • Mfr # MV14-8FK

  • Zoro # G5687071

product price:  $401.99
/pk 1000, $0.40/ea
Free Shipping & Returns

Key Features

Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MV14-8FK
Zoro #
G5687071
UPC #
00054007015307
Country of Origin
United States

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Stud Size
#8
Overall Length
0.9 in
Tongue Width - Wire Connector
0.34 in
Barrel Inside Dia.
0.09 in
Tongue Width
0.34 in
Maximum Insulation Outer Diameter
0.17 in
Barrel Length
0.25 in
Wire Rope Length
0.9 in

Details

Item
Fork Terminal
Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed
Max. Voltage
600 V
Connection Material
Copper
Seam
Brazed
Terminal Type
Standard
Terminal Connection
Crimp
Wire Range
16 to 14 AWG
Connection Type
Crimp
Max. Temp.
221 Degrees F

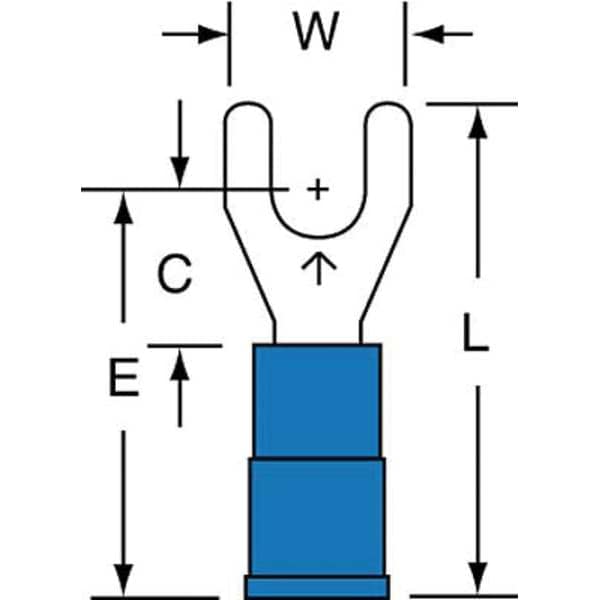

Clearance (C)
0.29 in
Solution for
Wireless Network Infrastructure Accessories
Seam Style
Brazed
Insulation Coverage
Partial Coverage
Series
MV14
Special Features
Funnel-Designed, Polyvinyl Chloride Sleeve Offers Easy Insertion of Wireswider-Tongue Design for use on Free-Standing Studs Electrolytic Copper Construction Offers Good Conductivity, Vinyl-Insulated, Brazed-Seam Barrel Ensures a Secure Fit and Offers Reliable Performance
Insulation Material
Vinyl
Contact Finish
Tin
Minimum Operating Temperature
-40 Degrees F
Barrel Style
Brazed

Description

Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #8, Termination Style Crimp, Seam Style Brazed, Standards CSA, RoHS 2011/65/EU, UL, Barrel Length 0.25 in, Barrel Style Brazed, Connection Material Copper, Connection Type Crimp, Minimum Operating Temperature -40 Degrees F, Minimum Wire Size 16 AWG, Overall Length 0.9 in
