  11. Insulation-Displacement Wire Connector, 16 AWG Max, 2 Port, Blue, Polypropylene Insulation, 600 V

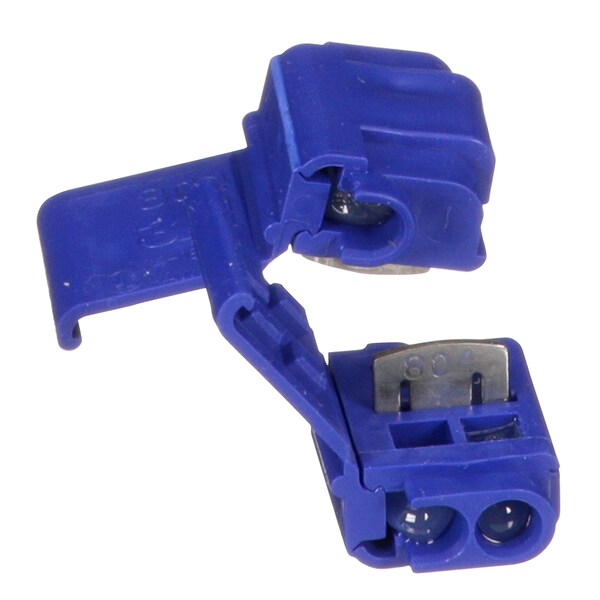

3M Insulation-Displacement Wire Connector, 16 AWG Max, 2 Port, Blue, Polypropylene Insulation, 600 V 804-BULK - main

Insulation-Displacement Wire Connector, 16 AWG Max, 2 Port, Blue, Polypropylene Insulation, 600 V

  • Mfr # 804-BULK

  • Zoro # G5717311

product price: $1,834.99
/pk 5000, $0.37/ea
Free Shipping & Returns

Key Features

Type
Insulation-Displacement
Color
Blue
Maximum Wire Size
16 AWG
Minimum Wire Size
18 AWG
Insulation Material
Polypropylene
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
804-BULK
Zoro #
G5717311
UPC #
00054007061359
Country of Origin
United States

Dimensions

Maximum Wire Size
16 AWG
Minimum Wire Size
18 AWG
Max. Insulation Dia.
0.145 in
Maximum Insulation Diameter
0.145 in
Minimum Tap Wire Size
18 AWG
For Minimum Wire Size - Solid
18 AWG

Details

Item
Insulation-Displacement Wire Connector
Type
Insulation-Displacement
Color
Blue
Insulation Material
Polypropylene
Maximum Voltage
600 V
Minimum Operating Temperature
167 Degrees F
Maximum Operating Temperature
167 Degrees F
Number of Ports
2
RoHS Compliant
Yes
Flame Retardant
Yes
Wire Type
Electrical
Fill Material
Gel
Application
Moisture Resistant
Crimping Tool
2JLF8
Standards
UL Listed
Resistance Properties
Moisture Resistant
Compatible Installation Tool Model Number
E-9BM
Special Features
Self Stripping

Description

Insulation Displacement Connector, Color Blue, Connector Type Single U-Element, Insulation Material Polypropylene, Maximum Insulation Diameter 0.145 in, Maximum Temperature 167 Degrees F, Minimum Run Wire Size 18 AWG, Maximum Run Wire Size 16 AWG, Minimum Tap Wire Size 18 AWG, Maximum Tap Wire Size 14 AWG, Maximum Voltage 600 V, Number of Ports 2, Fill Material Gel, RoHS Compliant Yes, Standards UL Listed, Application Moisture Resistant, Compatible Grainger Part Number 2JLF8
