Male Disconnect, Blue, 16-14AWG, PK250
Mfr # MNHU14-250DMIK
Zoro # G5750281
product price: $229.99
/pk 250, $0.92/ea
Free Shipping & Returns
Key Features
Insulation
Full
Insulation Color
Blue
Wire Range
16 to 14 AWG
Connection Type
Crimp
Insulation Type
Nylon
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNHU14-250DMIK
Zoro #
G5750281
UPC #
00054007063414
Country of Origin
United States
Dimensions
Overall Length
1.2 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.085 in
Pad Width
0.25 in
Diameter (D)
0.3 in
Minimum Conductor Size
16 AWG

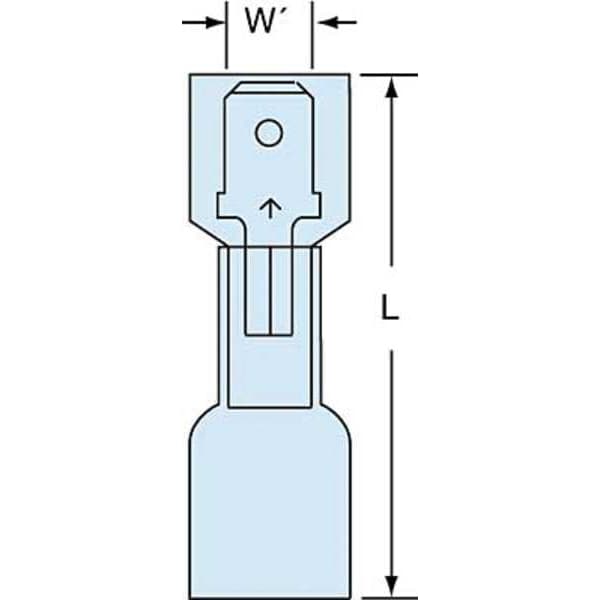

Male Tab Width (W')
0.25 in
Overall Width
0.44 in
Barrel Inside Diameter
0.085 in
Barrel Length
0.25 in
Tab Width
0.25 in
Maximum Conductor Size
14 AWG
Overall Diameter
0.3 in
Connection Width
0.25 in
Minimum Wire Size
16 AWG
Tab Thickness
0.032 in
Maximum Wire Size
14 AWG
Description
Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon with Heat Shrink, Maximum Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 1,000 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.085 in
