Male Disconnect, Red, 22-18AWG, PK1000
Mfr # MNU18-187DMIK
Zoro # G5502472
product price: $588.99
/pk 1000, $0.59/ea
Free Shipping & Returns
Key Features
Insulation
Full
Insulation Color
Red
Connection Type
Crimp
Insulation Type
Nylon
Wire Range
22 to 18 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNU18-187DMIK
Zoro #
G5502472
UPC #
00054007023791
Country of Origin
United States
Dimensions
Tab Size
0.020 in x 0.187 in
Overall Length
0.87 in
Barrel Inside Dia.
0.08 in
Pad Width
0.187 in
Maximum Insulation Outer Diameter
0.145 in
Overall Width
0.37 in
Overall Diameter
0.3 in
Minimum Conductor Size
22 AWG
Maximum Conductor Size
18 AWG

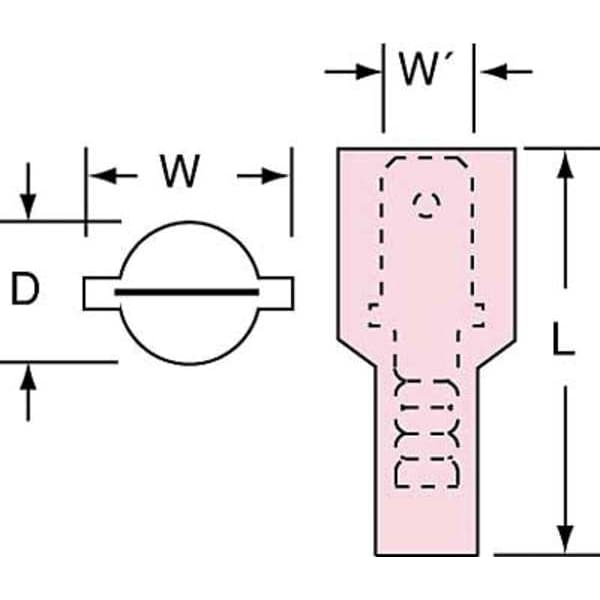

Male Tab Width (W')
0.187 in
Tab Width
0.187 in
Connection Width
0.187 in
Barrel Length
0.24 in
Diameter (D)
0.3 in
Barrel Inside Diameter
0.08 in
Tab Thickness
0.02 in
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Description
Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 1,000 V, Tab Thickness 0.02 in, Tab Width 0.11 in, Terminal Type Tab, Termination Style Crimp, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.08 in, Barrel Style Not Applicable
