Male Disconnect, Red, 22-18AWG, PK25
Mfr # MTI18-250Q
Zoro # G6126346
product price: $10.89
/pk 25, $0.44/eaKey Features
Insulation
Full
Material
Plastic
Insulation Color
Red
Insulation Type
Nylon
Wire Range
22 to 18 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MTI18-250Q
Zoro #
G6126346
UPC #
00051128600269
Country of Origin
United States
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
0.95 in
Barrel Inside Dia.
0.065 in

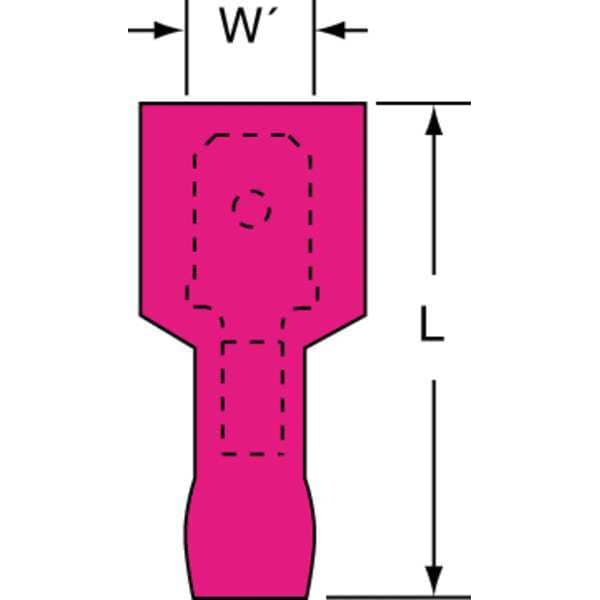

Mates with Male Tab Width (W')
0.25 in
Mates with Female Width
0.25 in
Minimum Conductor Size
22 AWG
Maximum Insulation Outer Diameter
0.145 in
Connection Width
0.25 in
Overall Diameter
0.3 in
Pad Width
0.25 in
Barrel Length
0.25 in
Maximum Conductor Size
18 AWG
Maximum Insulation Outside Diameter
0.145 in
Overall Width
0.44 in
Barrel Inside Diameter
0.065 in
Diameter (D)
0.3 in
Tab Width
0.25 in
Minimum Wire Size
22 AWG
Tab Thickness
0.032 in
Maximum Wire Size
18 AWG
Description
Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 1,000 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, Seam Style Butted, Standards CSA Certified, EU Compliant, UL Listed, Barrel Inside Diameter 0.065 in
