Ring Terminal, #10 Stud Size, 14 AWG, 600 V, Heat Shrink Insulated, Blue, Crimp Termination Only
- Mfr # MH14-10R/LK
- Zoro # G5717756
product price:Â
$
131.99
/pk of 250, $0.53/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Blue
Minimum Wire Size
16 AWG
Insulation Type
Heat Shrink
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MH14-10R/LK
- Zoro #
- G5717756
- UPC #
- 00054007063278
- Country of Origin
- United States
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Termination Style
- Crimp Termination Only
- Insulation Color
- Blue
- Insulation Type
- Heat Shrink
- Contact Material
- Copper
- Maximum Voltage
- 1,000 V
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 221 Degrees F
- Standards
- CSA Certified, UL Listed
- Connection Material
- Copper
- Terminal Connection
- Crimp
- Terminal Type
- Standard
- Wire Range
- 16 to 14 AWG
- Seam
- Brazed
- Max. Temp.
- 221 Degrees F
- Max. Voltage
- 600 V
- Connection Type
- Crimp
- Seam Style
- Brazed
- Contact Finish
- Tin
- Insulation Material
- Heat Shrink
- Special Features
- Corrosion Resistant
- Barrel Style
- Brazed

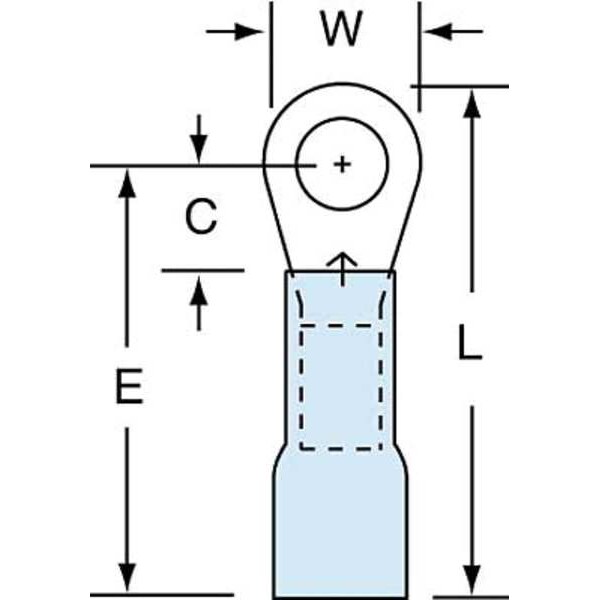

Dimensions
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 16 AWG
- Stud Size
- #10
- Tongue Width - Wire Connector
- 0.31 in
- Overall Length
- 1 in
- Connection Width
- 0.19 in
- Tongue Width
- 0.31 in
- Barrel Inside Diameter
- 0.09 in
- Barrel Size
- Standard
- Barrel Length
- 0.25 in
- Wire Rope Length
- 1 in
- Length
- 1 in
Description
Ring Terminal, Insulation Color Blue, Insulation Material Heat Shrink, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards EU Compliant, Barrel Inside Diameter 0.09 in, Barrel Length 0.25 in, Barrel Size Standard, Barrel Style Brazed, Insulation Type Heat Shrink, Overall Length 1 in, Package Quantity 250
