Ring Terminal, #10 Stud Size, 18 AWG, 1,000 V, Bare Insulated, Bare, Crimp Termination Only
Mfr # M18-10R/LK
Zoro # G5486135
product price: $223.99
/pk 1000, $0.22/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Bare
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M18-10R/LK
Zoro #
G5486135
UPC #
00054007010234
Country of Origin
United States

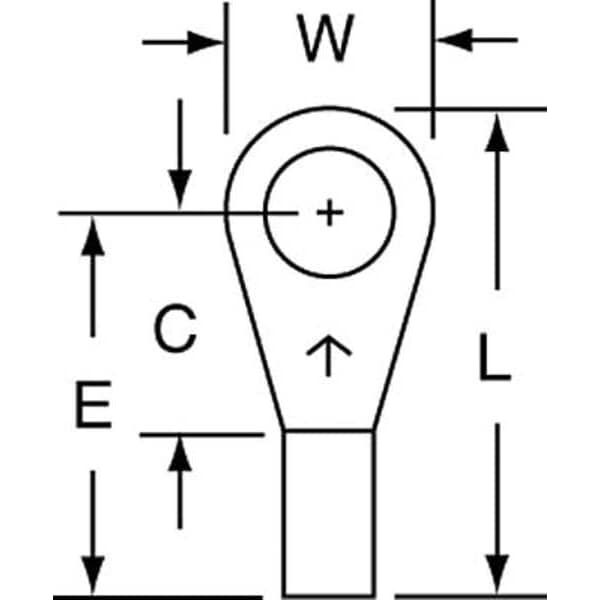

Dimensions
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Stud Size
#10
Tongue Width - Wire Connector
0.31 in
Overall Length
0.74 in
Barrel Inside Dia.
0.07 in
Barrel Length
0.25 in
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Tongue Length
0.49 in
Connection Width
0.19 in
Description
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 347 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.07 in, Barrel Length 0.25 in, Barrel Style Brazed, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs
