Ring Terminal, #10 Stud Size, 18 AWG, 600 V, Heat Shrink Insulated, Red, Crimp Termination Only
Mfr # MH18-10R/LK
Zoro # G4146950
product price:Â
$
131.99
/pk of 250, $0.53/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Red
Minimum Wire Size
22 AWG
Insulation Type
Heat Shrink
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MH18-10R/LK
- Zoro #
- G4146950
- UPC #
- 00054007063513
- Country of Origin
- United States

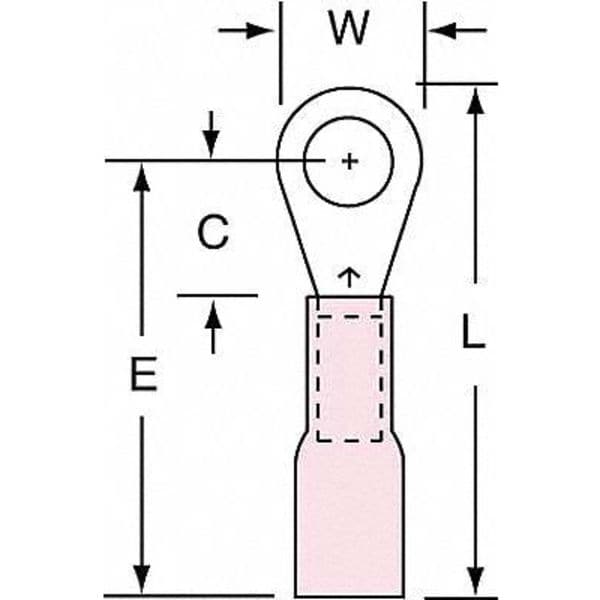

Dimensions
- Maximum Wire Size
- 18 AWG
- Minimum Wire Size
- 22 AWG
- Stud Size
- #10
- Tongue Width - Wire Connector
- 0.31 in
- Overall Length
- 1 in
- Connection Width
- 0.19 in
- Tongue Width
- 0.31 in
- Barrel Length
- 0.25 in
- Barrel Size
- Standard
- Barrel Inside Diameter
- 0.07 in
- Wire Rope Length
- 1 in
- Length
- 1 in
Description
Ring Terminal, Insulation Color Red, Insulation Material Heat Shrink, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards EU Compliant, Barrel Inside Diameter 0.07 in, Barrel Length 0.25 in, Barrel Size Standard, Barrel Style Brazed, Insulation Type Heat Shrink, Overall Length 1 in, Package Quantity 250
